Honeywell Measurex Parts Scanner Operation Panel 051000398
Product Introduction
I. Product Overview

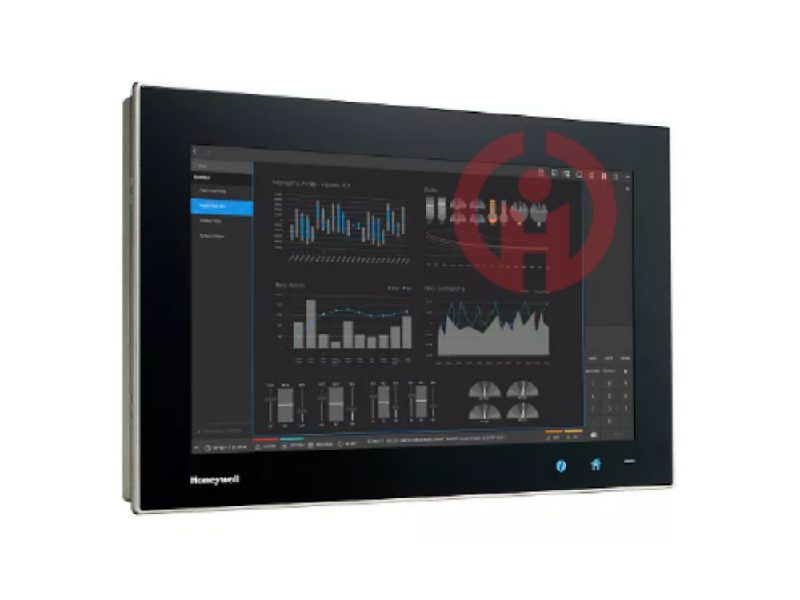

Honeywell 051000398 Scanner Operation Panel is the core component of QCS Quality Control System. It is designed for industrial thickness gauges and is used to control the movement of the scanning frame and the collection of sensor data to ensure the accuracy and stability of thickness measurement. Its functions cover high-precision demand scenarios such as papermaking, metal processing, and plastic production, and support real-time feedback and multi-mode operation.
II. Main Functions
2.1 Scanning Control
-- Start/stop the movement of the scanning frame through the "Scan" button, and the sensor synchronously collects thickness data to achieve dynamic measurement.
-- Supports preset scanning range to ensure that the measurement path matches production requirements.
2.2 Safety and Reset
-- The "Return to Garage" button can quickly reset the scanning frame to a safe position, which is suitable for shutdown maintenance or emergency status.
2.3 Boundary Setting and Mode Switching
-- Provides the "Set Boundary 1/2" function to flexibly adjust the scanning area to adapt to different material specifications.
-- Supports switching between manual mode (directly controlling the movement of the scanning frame) and online mode (linked control with the QCS system).
III. Technical features
· High-precision control: integrated with advanced sensor technology, measurement error ≤±0.1%, meeting strict industrial standards.
· Convenient operation: intuitive interface design reduces training costs; real-time data display and abnormal alarm function improve operational efficiency.
· Industrial-grade durability: protection level up to IP54, resistant to dust, humidity and chemical environment, suitable for complex scenes such as papermaking and chemical industry.
IV. Application areas
· Papermaking industry: control paper coating thickness and optimize finished product uniformity.
· Metal rolling: synchronize thickness gauge and rolling mill speed to improve plate thickness accuracy.
· Plastic/non-woven production: high-speed continuous monitoring of film thickness to reduce material waste.
V. Compatible equipment and spare parts
5.1 Main system: Honeywell QCS quality control system, thickness gauge scanning frame.
5.2 Related components:
· Quantitative sensor (such as 36000001), X-ray tube (57000013).
· DAQ data acquisition board (6580500046), FC control board (6580500097).
VI. Maintenance recommendations
· Regular calibration: Use standard thickness test blocks to verify sensor accuracy to ensure the reliability of measurement data.
· Environmental cleaning: Remove dust from the operation panel and scanning frame guide rails to avoid mechanical jamming.
· Spare parts replacement: Give priority to original spare parts (such as 308-7337-05 inverter) to ensure compatibility and long-term stability.
· Many products are not yet on the shelves please contact us for more products.
· If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will arrange to take pictures in the warehouse to confirm!
