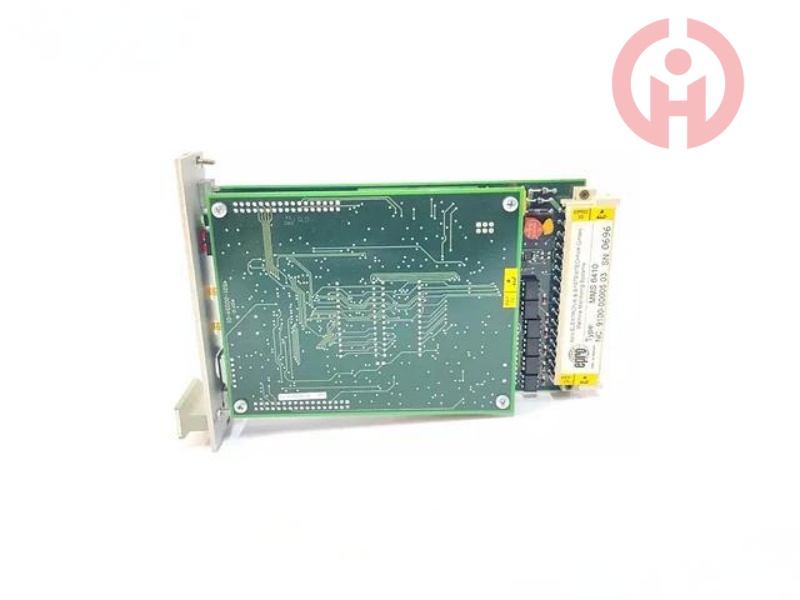

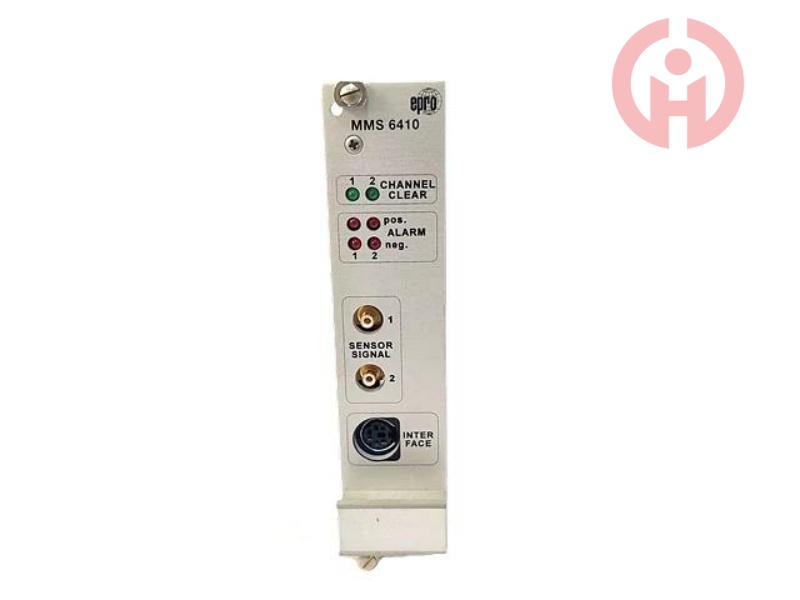

Product Introduction

Functional Features
Dual channel design: It has two independent measurement channels, which can simultaneously measure two signal sources. Each channel can work independently and can also perform addition, subtraction, and other operations on the measurement results of the two channels.
Multiple signal measurement: It can measure static and dynamic signals of physical quantities such as displacement, angle, force, torsional vibration, etc., and is often used to measure shaft displacement.
Wide frequency range: The signal frequency range can reach 0-100Hz.
Flexible zero adjustment: Zero adjustment and zero offset are independent of the selected measurement range, facilitating calibration and compensation.
Strong anti-interference ability: The sensor power supply has balanced grounding, which can effectively suppress interference in industrial environments.
Rich communication interfaces: Equipped with RS232 interface for configuring and reading measurement results, RS485 interface can be connected to EPRO's MMS6800 analysis and diagnosis system or upper computer.
Improve self checking function: It has extended self checking function, built-in sensor self checking function, and password protection operation level to ensure the reliability and safety of measurement.

technical parameter
Sensor input
Input type: Two independent inputs, supporting inductive sensors and differential transformers with half bridge and full bridge configurations.
Signal input type: differential input, electrically isolated from the system power supply, with open circuit and short circuit protection.
Maximum input voltage: 3.6V (overvoltage protection).
Nominal input voltage range: 2.5Vrms.
Input impedance: 200k Ω.

Sensor power supply
Carrier frequency: 4.75kHz.
Nominal supply voltage: 4Vrms.
Allowable load: 120-600 Ω.

control input
Logical input: Two channels share logical binary input.
Optocoupler mode: There are "Alert" and "Danger" modes, which can be set to open or closed circuit mode; It also supports channel or module prohibition function.
Limit multiplier: adjustable within the range of 1.000-4.999, used to change alarm limits during machine startup and shutdown.
Keyphase signal input

Logic: 24V logic.
Input resistance:> 30k Ω.
Pulse duration: minimum 10 µ s (edge triggered).

application area
Mainly used in situations where precise monitoring and protection of rotating equipment are required, such as steam turbines, gas turbines, water turbines, compressors, fans, centrifuges, and other turbine machinery. It can measure parameters such as cylinder thermal expansion and shaft displacement, providing important data support for the safe operation, performance optimization, and fault diagnosis of equipment
