Product Introduction

Basic parameters
Size: Diameter 16cm, Height 12cm
Weight: 0.8kg
Protection level: IP55
Material: Aluminum Magnesium Silicon Lead F28
Power supply: self powered
Working temperature range: -20 ℃ to+100 ℃
Relative humidity: 0-100%, no condensation

Technical performance
Measurement direction: vertical direction, angle deviation ± 30 ° (no sinking current)
Sensitivity: 28.5mV/mm/s (723.9mV/in/s)
Frequency range: 4-1000Hz
Natural frequency: 4.5Hz ± 0.75Hz (at 20 ℃)
Lateral sensitivity: not specifically stated, but does not belong to omnidirectional sensors. Sensitivity in non measurement directions should be lower
Vibration amplitude (mechanical limit): 3000 µ m (peak to peak)
Maximum acceleration: continuous 10g (98.1m/s ²), intermittent 20g (196.2m/s ²)

Structural Design
Internal structure: Composed of a measuring coil supported by seismic blocks and spring plates, the measuring element can move in a circular permanent magnet magnetic field.

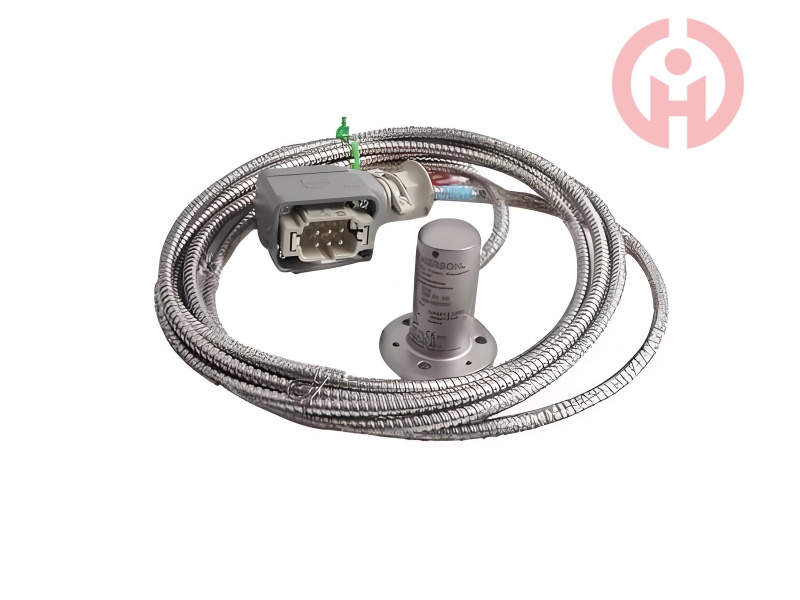

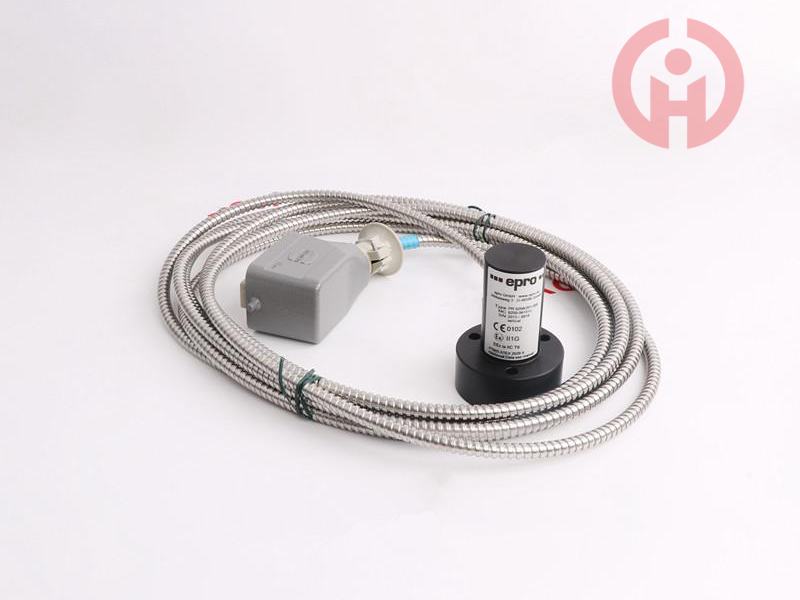

Cable and connection: The cable type is PTFE, 3 × 0.5mm ², with stainless steel armor; Adopting die cast aluminum Hardin plug.

application area
Suitable for vibration measurement of various turbomachinery, fans, compressors, gearboxes, water pumps, coal mining machines and other equipment. It can be installed on the equipment casing and other positions to monitor the absolute vibration of the equipment, help determine the operating status of the equipment, and detect whether there are problems such as imbalance, misalignment, bearing faults, etc. It is widely used in industries such as steel, power, metallurgy, chemical, petrochemical, etc.
