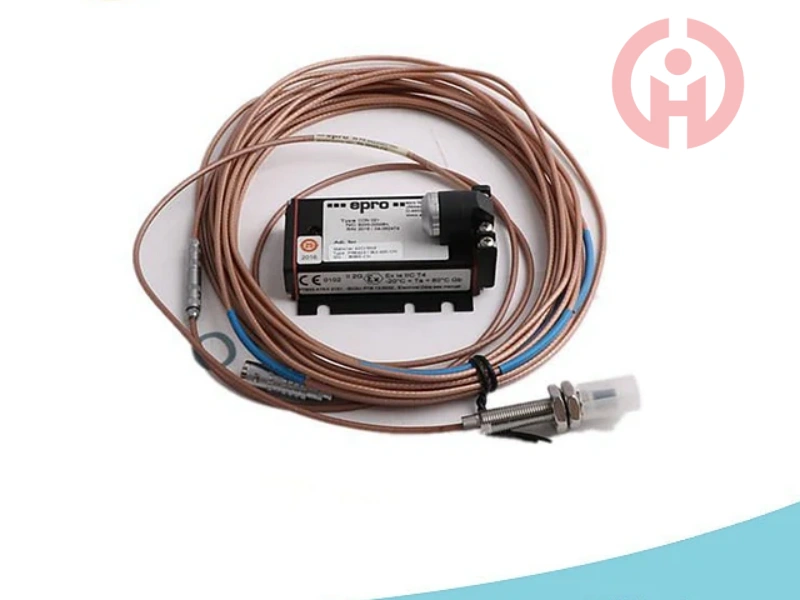

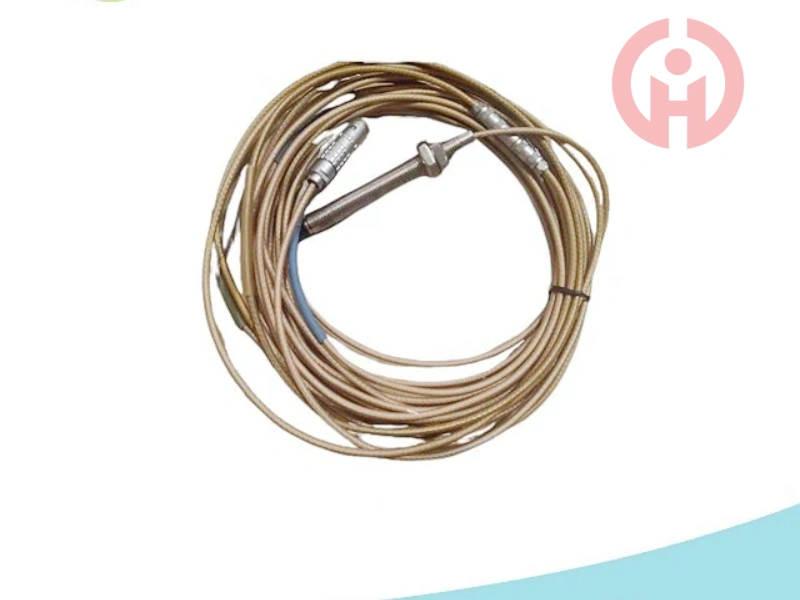

Product Introduction

technical parameter
Measurement range: Linear measurement range of 2mm (80mils).
Initial air gap: 0.5mm (20mils).
Incremental scaling factor: 8V/mm (203.2mV/mil) ± 5% at 0 to 45 ° C.
Deviation from the best fitting line: ± 0.025mm (± 1mil) at 0 to 45 ° C.
Minimum shaft diameter: 25mm (0.79 inches).
Target material: Ferromagnetic steel (42CrMo4, AISI/SAE 4140).
Protection level: IP66， Compliant with IEC 60529 standard.
Working temperature range: Sensor (with 1m cable) is -35 to+200 ° C (-31 to 392 ° F); The cables and connectors are at -35 to+150 ° C (-31 to 302 ° F).
Material: The sensor probe is made of polyetheretherketone (PEEK); The shell is made of stainless steel; The cable is made of polytetrafluoroethylene (PTFE); The connector is made of nickel plated brass.
Weight: The sensor with a 1m cable weighs approximately 100 grams (3.53 ounces).
Probe diameter: 8mm.
Thread specifications: M10x1。
Cable length: 8 meters.
Cable end: LEMO connector.

characteristic
High sensitivity: capable of detecting small vibrations and can be used for early fault detection.
Wide working temperature range: suitable for various industrial environments.
Durable design: capable of withstanding harsh industrial conditions.
Non contact measurement: using the principle of eddy current, without direct contact with the measured object, it will not cause wear or interference to the measured object, and can also avoid measurement errors caused by contact.
High precision measurement: With high linearity and accuracy, it can accurately measure parameters such as displacement and vibration.
Compliant with international standards: Manufacturing and use comply with various international universal standards such as API 670, DIN 45670, ISO 10817-1, etc.

application area
Commonly used to measure the radial and axial shaft dynamic displacement, position, eccentricity, and velocity of rotating machinery, it is widely used for monitoring and protection of key turbine machinery such as steam turbines, gas turbines, water turbines, compressors, gearboxes, pumps, fans, etc. Specifically, it can measure the gap between the rotating and fixed parts, shaft vibration and eccentricity, shaft bending, bearing wear, oil film thickness, relative thermal expansion between the shaft and bearings, thermal expansion of bearings, valve position, etc.
