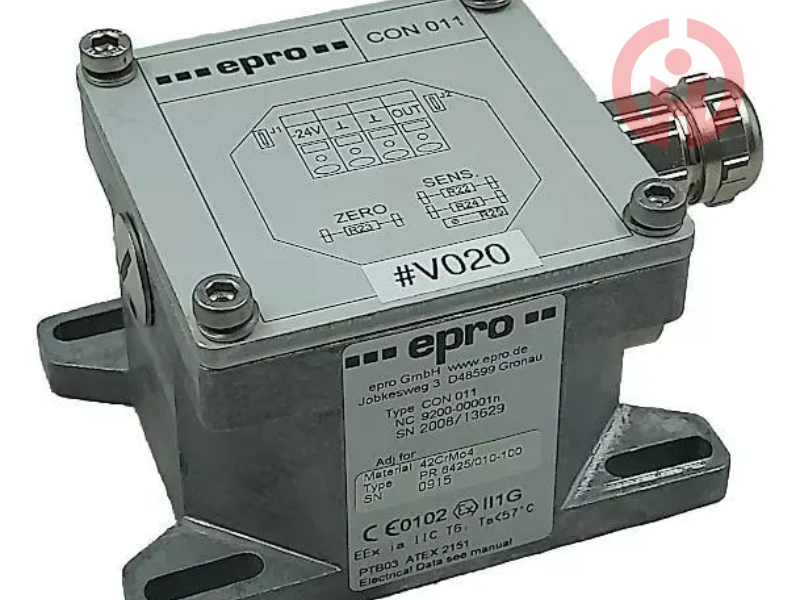

Product Introduction

Functional Features
Signal conversion: The signal transmitted by the eddy current sensor can be converted into a form that is easy to process and analyze, providing accurate and reliable data for monitoring and control.
Widely applicable: Suitable for key turbine machinery such as steam, natural gas, and hydraulic turbines, compressors, pumps, fans, etc., it can measure parameters such as radial and axial shaft displacement, position, eccentricity, and velocity.
Strong compatibility: Can be used in conjunction with sensors of PR6422, PR6423, PR6424, PR6425, PR6426 and other models.

technical parameter
Dynamic performance: The frequency range (-3dB) is from 0 to 20000Hz, and the rise time is less than 15 μ s.
Environmental parameters: Operating temperature range of -30 ℃ to 100 ℃ (-22 to 212 ° F), capable of withstanding 5g@60Hz @25 ° C (77 ° F) impact and vibration, with a protection level of IP20.
Power and Electrical: The power supply voltage range is -23V to -32V (output range -4V to -20V), or -21V to -32V (output range -2V to -18V) can be selected.

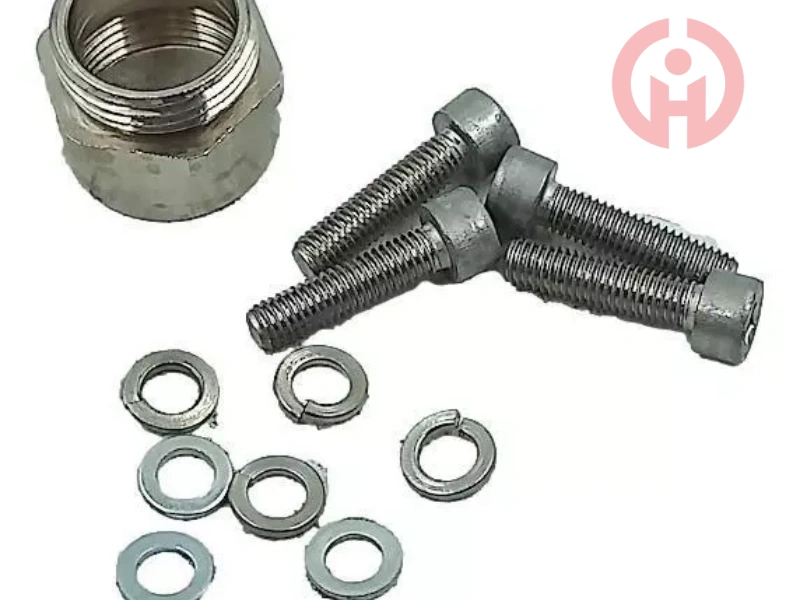

Physical characteristics: The shell material is ALMgSi0.5 F22, weighing approximately 120 grams (4.24 ounces), installed with 4 M5x20 screws, and connected using screw terminals (maximum 1.5 square millimeters, wire end sleeve).

Many products are not yet on the shelves please contact us for more products.

If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will

arrange to take pictures in the warehouse to confirm!
