Product Introduction

Electrical characteristics
input parameter
Voltage range: It may support a wide voltage input of AC 90V-264V and can adapt to different regional power and voltage fluctuation environments.

Frequency range: The input frequency is generally between 50Hz and 60Hz.

Output parameters

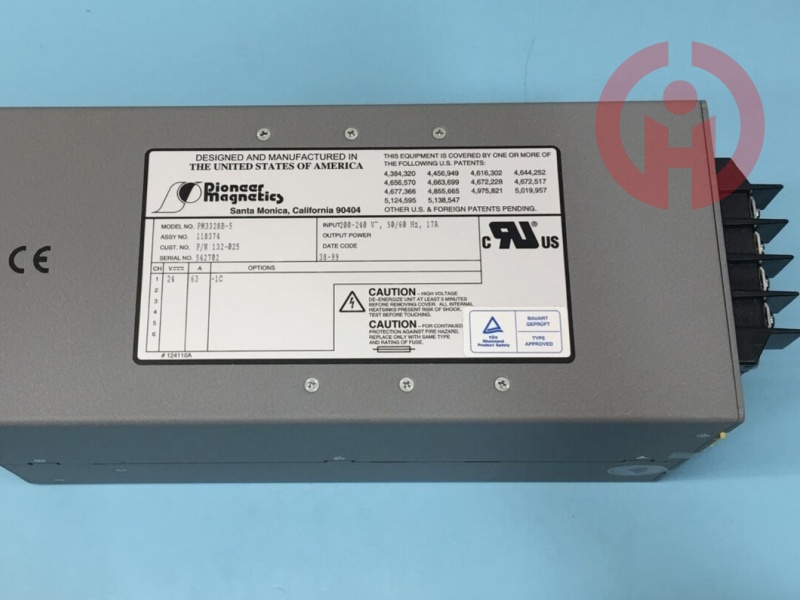

Output voltage: It is speculated that common standard voltage outputs such as 24V and 48V may be provided, and PM3328B-5 may output 24V.

Output current: The expected output current is around 10A to 30A, which can meet the power demand of certain load devices.

Output power: Based on the output voltage and current, the output power may be between 200W and 600W.

physical characteristics
Size specifications: Standard 1U or 2U height rack mounted design may be used, with a width of 19 inches and a depth of 300mm-500mm.

Shell material: Aluminum alloy or cold-rolled steel plate is usually used for the shell to ensure good heat dissipation and electromagnetic shielding performance.

Weight: The estimated weight is around 3kg-8kg.

Protection function
Overvoltage protection: When the output voltage exceeds the safety threshold, such as 10% -20% of the rated output voltage, the power supply automatically cuts off the output to

protect the load equipment.

Overcurrent protection: When the output current exceeds the rated value, such as reaching 120% -150% of the rated current, the overcurrent protection mechanism is triggered.

Overheating protection: An internal temperature sensor is installed, which automatically reduces output power or cuts off output when the internal temperature reaches 80 ℃ -90

℃.

Short circuit protection: When the output terminal is short circuited, it can quickly detect and cut off the output, and automatically recover after troubleshooting.

Application scenarios
Industrial automation: can be used to drive equipment such as PLCs, sensors, and small motors on industrial production lines.

In the field of communication, it can provide stable power for RF modules, baseband processing units, etc. in communication base stations.

Data Center: Provides power to servers, storage devices, network switches, and other components of the data center.

Medical equipment: suitable for small medical monitors, small diagnostic devices, and other devices that require high power stability

Many products are not yet on the shelves please contact us for more products.

If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will

arrange to take pictures in the warehouse to confirm!
