Product Introduction

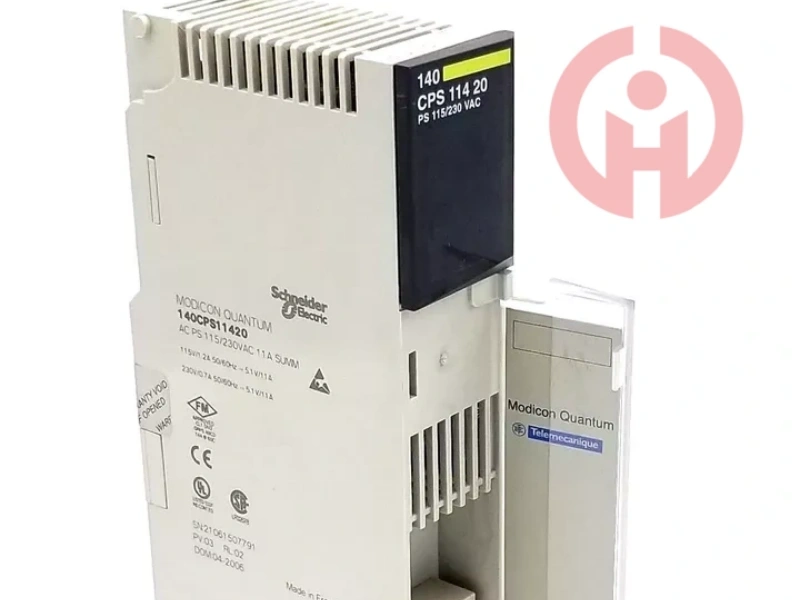

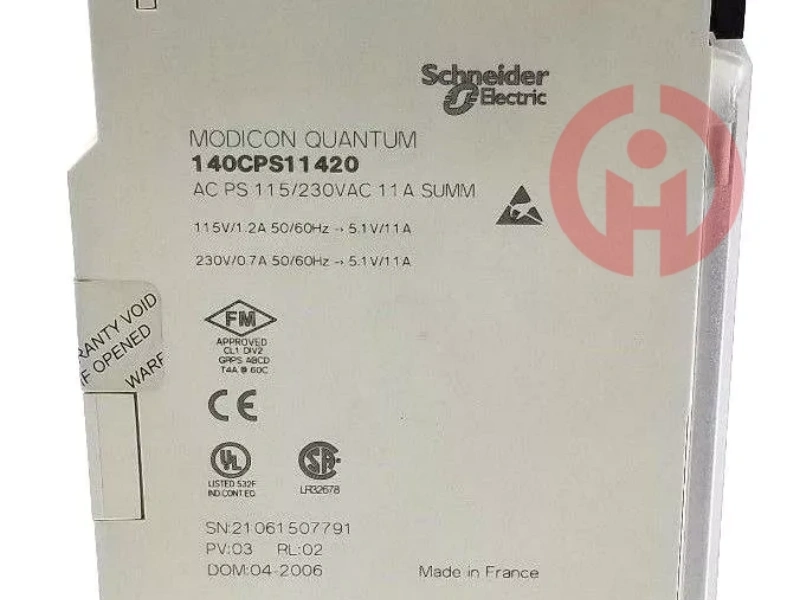

Range of ProductModicon Quantum automation platform

Product or Component TypePower supply module

Power supply typeSummable or standalone

ComplementaryInput voltage115 V 93...132 V) AC 47…63 Hz

230 V 170...276 V) AC

Input current1300 mA 115 V

750 mA 230 V

Inrush current19 A 230 V

38 A 115 V

Rated power in VA130 VA

Associated fuse rating2 A, slow-blow

Harmonic distortion<= 10 % of fundamental rms value

Output voltage5.1 V DC

Power supply output current11 A 140 °F (60 °C) standalone

20 A 140 °F (60 °C) summable

Output overvoltage protectionInternal

Output overload protectionInternal

Power dissipation6 + (1.5 x Iout) where Iout is in A

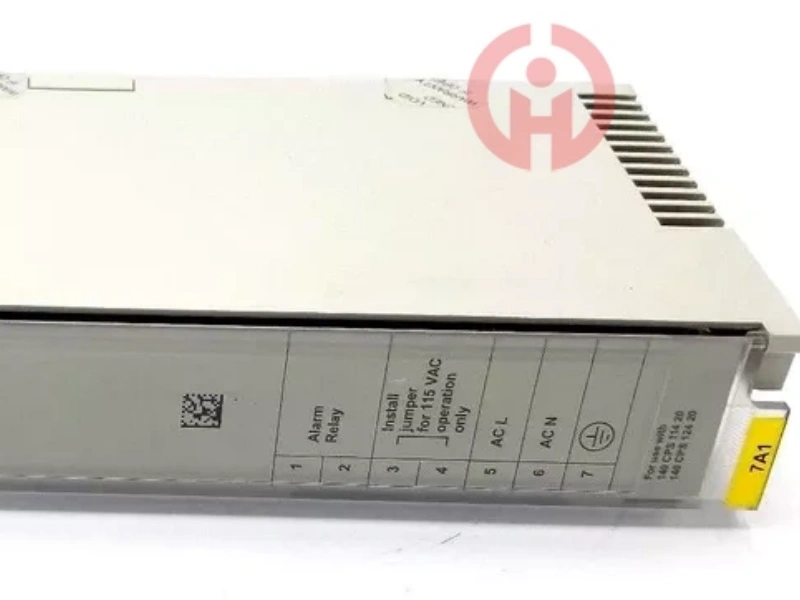

Alarm output1 NC 6 A 220 V power supply fault

Local signallingfor power (PWR OK) 1 LED (green)

MarkingCE

Module formatStandard

Net Weight1.43 lb(US) (0.65 kg)

EnvironmentStandardsUL 508

CSA C22.2 No 142

Product CertificationscUL

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
