Product Introduction

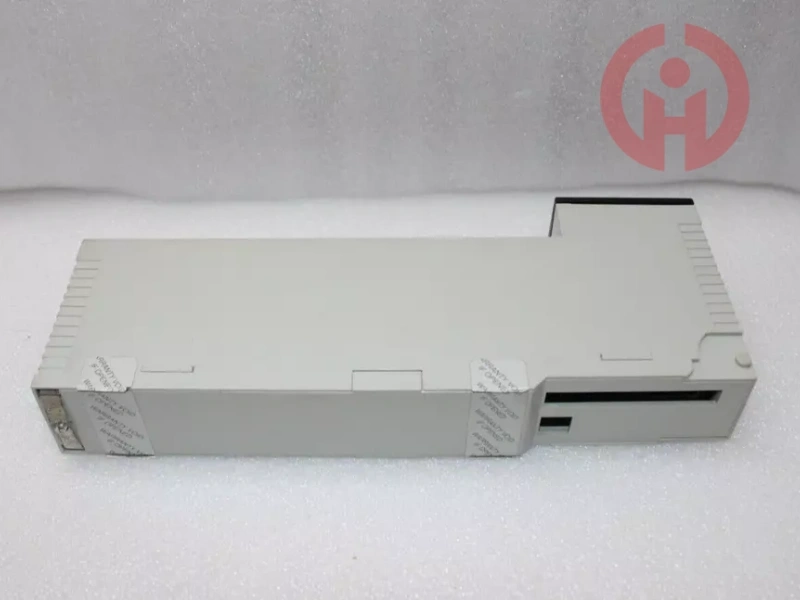

Range of ProductModicon Quantum automation platform

Product or Component TypeLow voltage dc discrete input modules

Discrete input number32

ComplementaryGroup of channels4

Logic inputNegative (source)

Discrete input voltage5 V TTL DC

Input voltage limits4.5...5.5 V

Voltage state 1 guaranteed0.8 V DC

Voltage state 0 guaranteed>= 4 V DC at 5.5 V supply voltage

Current state 1 guaranteed4 mA

Addressing requirement2 input words

Input impedance7500 Ohm

Maximum leakage current200 mA at Us = 5.5 V and Uin = 4 V

Absolute maximum input15 V during 1.3 ms decaying pulse

5.5 V continuous

Response Time<= 250 µs from state 0 to state 1

<= 500 µs from state 1 to state 0

Protection TypeInput protection

Power dissipation5 W

Isolation between group and bus1780 Vrms for 1 minute

Isolation between group500 Vrms for 1 minute

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 32 LEDs (green)

MarkingCE

Bus current requirement170 mA

Module formatStandard

Net Weight0.99 lb(US) (0.45 kg)

EnvironmentStandardsCSA C22.2 No 142

UL 508

Product CertificationsGOST

FM Class 1 Division 2

cUL

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
