Product Introduction

Range of ProductModicon Quantum automation platform

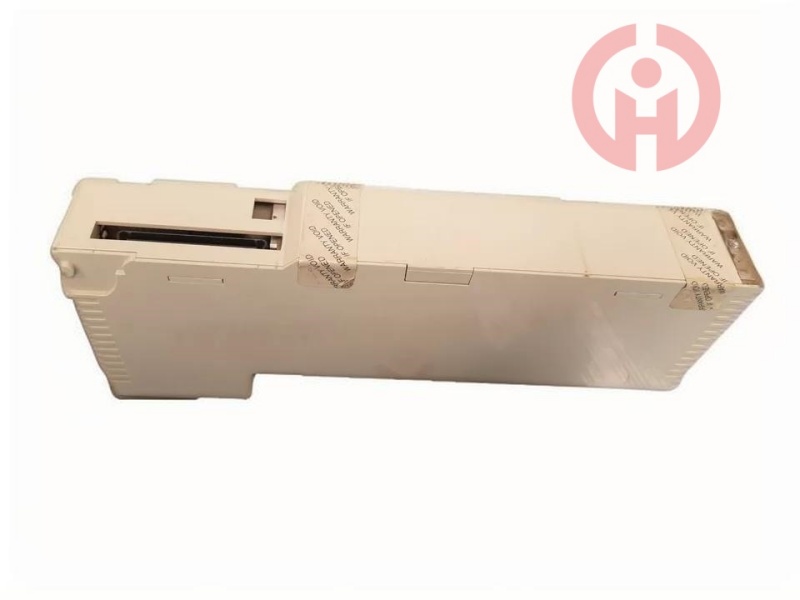

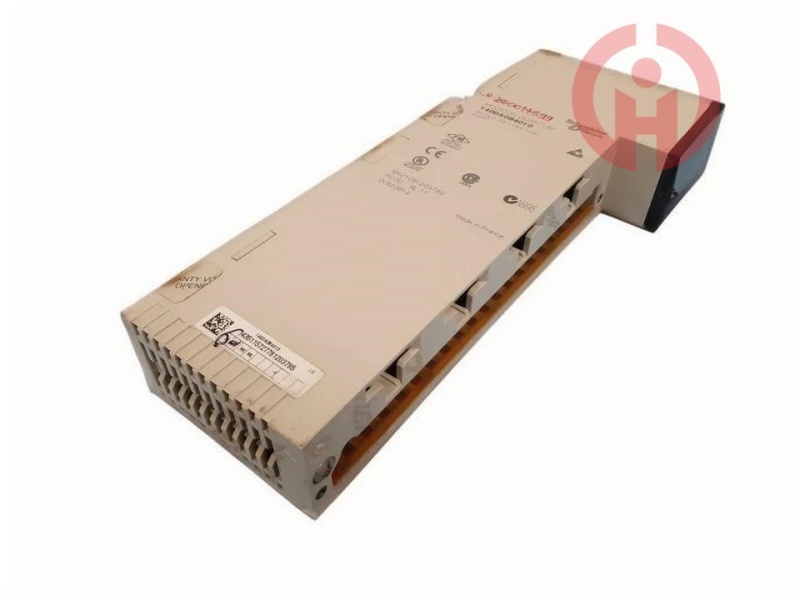

Product or Component TypeAC discrete output modules

Discrete output number16

ComplementaryDiscrete output typeIsolated

Group of channels16 groups of 1 channel

Supply frequency47...63 Hz

Maximum voltage drop1.5 V

Discrete output voltage20...253 V AC

Addressing requirement1 output word

Absolute maximum output300 Vrms 10 s AC

400 Vrms 1 cycle AC

Maximum load current1 mA rms 24 Vrms off state leakage per output

1 mA rms 48 Vrms off state leakage per output

2 mA rms 115 Vrms off state leakage per output

2.5 mA rms 230 Vrms off state leakage per output

3 A rms 200...230 V per output

4 A rms 24...115 V per output

16 A rms per module

4 A rms sum of four points, continuous

Surge current10 A during 3 cycles per point

20 A during 2 cycles per point

30 A during 1 cycle per point

DV/dt400 V/ms

Response Time<= 0.5 ms at state 0 to state 1

<= 0.5 ms at state 1 to state 0

Protection TypeInternal by RC filter

Power dissipation1.85 + (1.1 V x total module load current)

Associated fuse rating5 A

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 16 LEDs (green)

Bus current requirement350 mA

Module formatStandard

Net Weight1.069 lb(US) (0.485 kg)

EnvironmentProduct CertificationscUL

FM Class 1 Division 2

StandardsUL 508

CSA C22.2 No 142

Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 4 kV (contact discharge) conforming to IEC 801-2

Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 801-2

Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
