Product Introduction

Range of ProductModicon Quantum automation platform

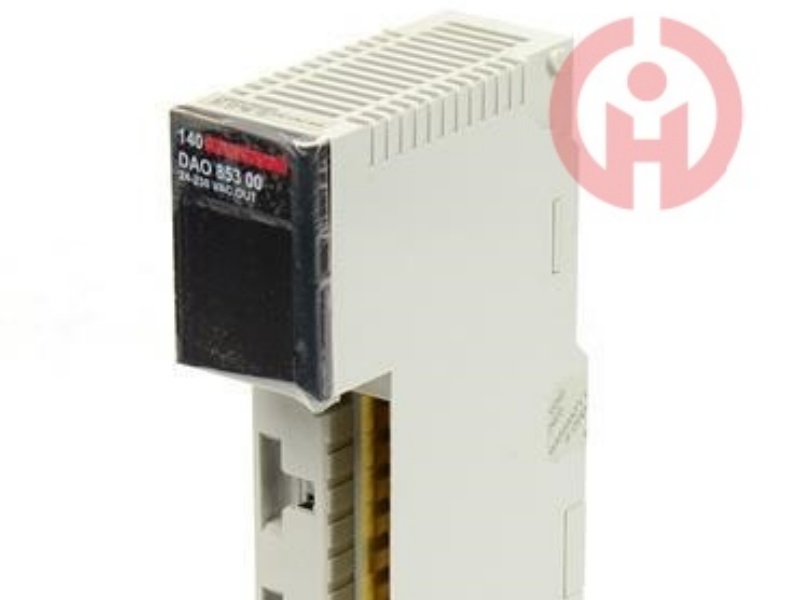

Product or Component TypeAC discrete output modules

Discrete output number32

ComplementaryGroup of channels4 groups of 8 channels

Supply frequency47...63 Hz

Maximum voltage drop1.5 V

Discrete output voltage20...253 V AC

Addressing requirement2 output words

Absolute maximum output300 Vrms 10 s AC

400 Vrms 1 cycle AC

Maximum load current16 A rms per module

4 A rms per group

0.88 mA 230 V off state leakage per output

1 A rms 20...253 V per output

Surge current2.5 A 1 ms

DV/dt400 V/ms

Response Time<= 0.5 ms at state 0 to state 1

<= 0.5 ms at state 1 to state 0

Protection TypeInternal output protection by 4 A fuse

Internal by RC filter

Power dissipation1.60 + (1.0 V x total module load current)

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 32 LEDs (green)

Bus current requirement320 mA

Module formatStandard

Net Weight0.99 lb(US) (0.45 kg)

EnvironmentProduct CertificationscUL

FM Class 1 Division 2

StandardsCSA C22.2 No 142

UL 508

Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 4 kV (contact discharge) conforming to IEC 801-2

Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 801-2

Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
