Product Introduction

Range of ProductModicon Quantum automation platform

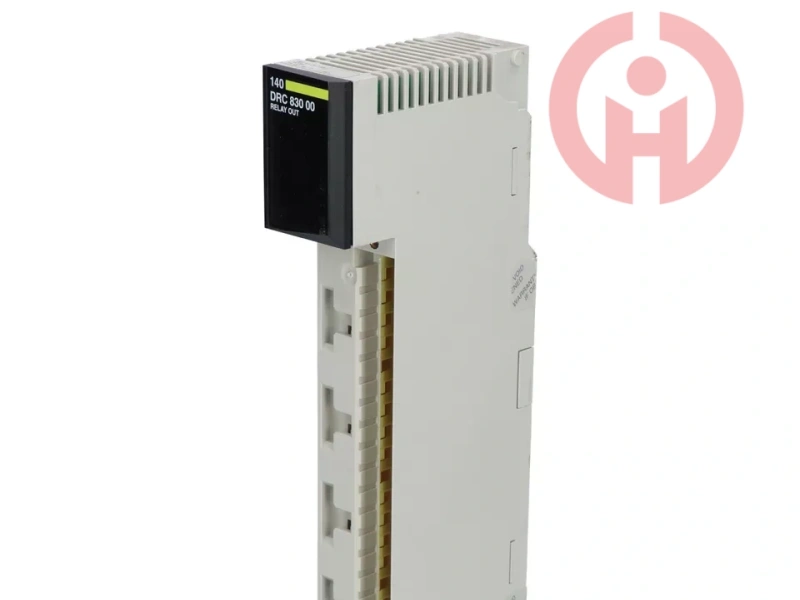

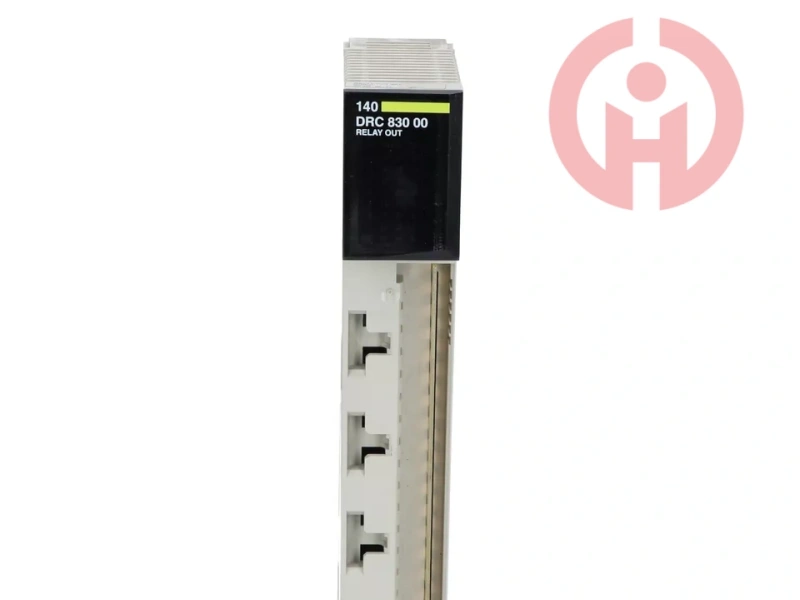

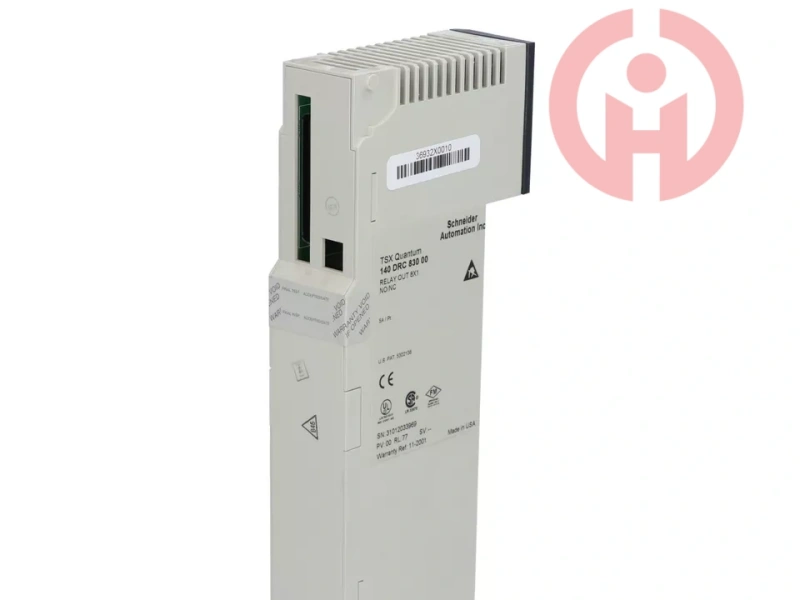

Product or Component TypeRelay discrete output module

Discrete output number8

ComplementaryContacts type and composition1 NO/NC

Contact formForm C

Discrete output voltage20...250 V AC

30...150 V DC

5...30 V DC

Addressing requirement0.5 output word

Maximum load current100 mA 30...50 V DC L/R = 10 ms

2 A 250/30 V AC/DC tungsten 1/4 hp cos phi = 0.4

3 A 250/30 V AC/DC

300 mA 30...50 V DC resistive

5 A 250/30 V AC/DC resistive 140 °F (60 °C)

Surge current20 A 10 ms capacitive

Switching frequency30 Hz resistive

F = 0.5/I²L inductive

Switching capacity in VA1250 VA resistive

Maximum response time on input open10 ms at state 0 to state 1

20 ms at state 1 to state 0

Mechanical durability10000000 cycles

Electrical durability100000 cycles 100 mA 30...150 V DC L/R = 10 ms

100000 cycles 30...150 V DC interposing relay

100000 cycles 300 mA 30...150 V DC resistive

100000 cycles 5 A 30 V DC resistive

200000 cycles 5 A 250 V AC resistive

50000 cycles 500 mA 30...150 V DC resistive

Output overvoltage protectionInternal by varistor, 275 V

Isolation between channels1780 Vrms AC for 1 minute

2500 V DC

Isolation between channels and bus1780 Vrms AC for 1 minute

2500 V DC for 1 minute

Power dissipation2.75 W + (0.5 x the number of points on)

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 8 LEDs (green)

Bus current requirement560 mA

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentProduct CertificationsC-tick

GOST

GL

RMRS

FM Class 1 Division 2

ABS

DNV

RINA

StandardsUL 508

CSA C22.2 No 142

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
