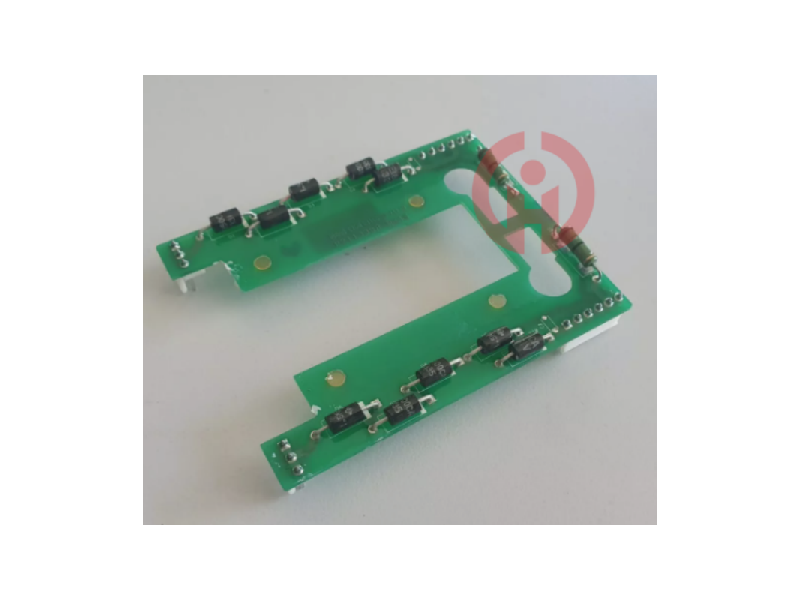

Siemens Robincon GH180 clamping board A1A10000428.05M
A1A10000428.05M is a model of Siemens Robincon GH180 clamping board, which is mainly used to absorb surge current and protect IGBT. In the design and use of inverters, reasonable wiring, reducing interference sources, shielding the lines and accurate grounding are essential to ensure the reliability and safety of the entire system.
Product Introduction
A1A10000428.05M is the Siemens Robincon GH180 clamping board, which is mainly responsible for absorbing surge current and protecting IGBT.
The clamping board is installed on the IGBT. In the design and use of the inverter, the internal structure, working principle and use environment of the inverter should also be considered. By taking various measures such as shielding, grounding and isolation, the entire system can work reliably and safely.
Functional aspects
As the Siemens Robincon GH180 clamping board, it is mainly responsible for absorbing surge current and protecting IGBT, which helps to ensure the normal operation of related equipment such as inverters and avoid IGBT damage due to surge current.
Application scope
It is suitable for three-phase AC525-690V equipment with a rated power of 6000kW. In a high-voltage power supply environment, it is suitable for equipment with three-phase power supply phases. It can be used in equipment with various application ranges such as square torque, and the application scenarios are relatively wide.
Product matching
It is a model in the Siemens Robincon series. The Siemens brand has a wide range of product lines and a high reputation in the field of industrial automation. It may be easier to obtain other products or technical support resources that match it. From the perspective of the product ecosystem, it has certain advantages. This speculation is based on the wide influence of the Siemens brand in the industrial field and the integrity of the relevant product lines.
The role of the clamping board: The clamping board is installed on the IGBT (insulated gate bipolar transistor), which is mainly responsible for absorbing surge current and protecting the IGBT from overcurrent damage.
Application scope and specifications
Application scope: Suitable for square torque inverters, especially in situations where high power output is required.
Number of power phases: three-phase
Rated voltage: three-phase AC525-690V
Applicable motor power: up to 6000kW
Filter configuration: The standard configuration does not include a filter, but it can be installed as needed
Precautions for installation and use
Reasonable wiring: The control line should be kept as far away from the input and output lines of the inverter as possible, and cross or orthogonal to the input and output lines in space to weaken the interference signal.
Reduce interference sources: Connecting a reactor or filter is especially important for low-power inverters. You can also increase the impedance of the wire by passing the motor cable through a ferrite ring to prevent electromagnetic interference current from flowing.
Line shielding: The connection line between the inverter and the motor should be inserted into a metal pipe as much as possible, and ensure that the metal pipe is grounded to reduce electromagnetic interference.
Accurate grounding: The grounding wire should be as thick as possible and the grounding point should be close to the inverter. At the same time, avoid connecting it with the grounding wire of other equipment to prevent short circuits.
Siemens Robincon inverters are widely used in many fields, including industrial automation, power, petroleum, manufacturing, chemical industry, metallurgy, mining, water treatment and environmental protection.
Main application areas
Industrial automation: Robincon inverters play a vital role in the field of industrial automation and are widely used in the drive and control of various mechanical equipment, such as spinning machines, agitators, winches and other equipment in the textile, chemical, steel and other industries. Driven by the inverter, these devices can adjust and control the running speed, thereby improving production efficiency and product quality
Power and Energy: In the field of power generation, Robincon inverter helps to improve power generation efficiency and energy utilization. In the power transmission and distribution system, it can be used to control equipment such as motors, pumps and fans to achieve energy saving and stable operation
Oil and Gas: In the process of oil and gas extraction, Robincon inverter can be used to control drilling equipment, pumping units, etc. to improve extraction efficiency and safety. In oil and gas pipelines, it can be used to control equipment such as pumps and compressors to ensure the stability and efficiency of oil and gas transmission
Manufacturing: In the field of mechanical manufacturing, Robincon inverter can be used to control various machine tools, production lines and other equipment to achieve automated production and improve production efficiency. In the food processing industry, it can be used to control equipment such as mixers and conveyor belts to ensure the hygiene and safety of food processing
Chemical and Pharmaceutical: In the chemical production process, Robincon inverter can be used to control the temperature and flow control of equipment such as reactors and mixers. In the pharmaceutical manufacturing industry, it can be used to control pharmaceutical equipment, conveying systems, etc. to ensure the quality and safety of medicines
Metallurgy and mining: In the metallurgical production process, Robincon inverters can be used to control blast furnaces, converters and other equipment.
