Product Introduction

1. Basic Information

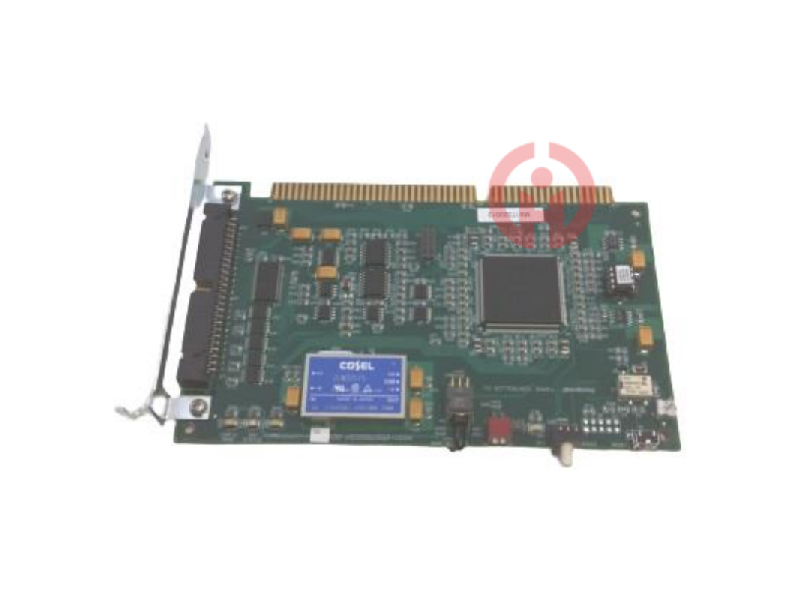

‌Model‌: 6580801365
‌Type‌: Frame Controller IV Upgrade Kit
‌Brand‌: Honeywell
‌Compatible System‌: Honeywell QCS (Quality Control System), integrated in industrial thickness gauges, scanning frames and other equipment‌.

2. Core Functions and Technical Features
‌2.1 Performance Upgrade‌

-- High-performance processor and optimized circuit design are used to significantly improve the processing speed and stability of the control board, and support complex control algorithms and real-time processing of large amounts of data‌.
-- Compatible with Honeywell QCS system, seamless integration can be achieved without large-scale system transformation, reducing upgrade costs‌.

‌2.2 Industrial-grade Reliability‌

-- Redundant design (such as dual power supplies, hot-swappable fans) and anti-interference technology ensure continuous and stable operation under harsh working conditions such as high temperature, high humidity, and dust‌.
-- Through strict quality testing, the failure rate is low, suitable for industries with high stability requirements such as papermaking and metal processing‌.

‌2.3 Modularity and maintainability‌

-- Support hot-swap replacement, simplify maintenance process, and reduce downtime‌.
-- Provide standardized communication interfaces (such as Ethernet, Profibus) to facilitate cooperation with sensors, actuators and other equipment‌.

3. Application scenarios
‌3.1 Papermaking industry‌: Integrated in the scanning frame system, real-time adjustment of the scanning head position and parameters, and optimization of paper thickness and moisture uniformity detection accuracy‌.
‌3.2 Metal processing‌: Linking thickness gauge and rolling mill control system, dynamically adjusting rolling pressure, and improving sheet processing consistency‌.
‌3.2 Plastic film production‌: Through high-precision motion control, fast detection of film defects and automatic correction are achieved‌.

4. Upgrade process and maintenance recommendations
4‌.1 Upgrade steps‌:

‌Demand assessment‌: Analyze the performance bottleneck of the existing system and confirm the necessity of upgrading‌.
‌Backup and installation‌: Back up data before upgrading, install the upgrade kit according to the manual specifications, and avoid live operation‌.
‌Test and Calibration‌: After installation, system calibration and functional testing are required to ensure that the control accuracy meets the standard. ‌
‌4.2 Maintenance Specifications‌: ‌Clean the control panel interface and heat dissipation components regularly to prevent dust accumulation from affecting performance. ‌
It is recommended to purchase original spare parts through Honeywell authorized channels to ensure compatibility and long-term stability. ‌

5. Advantages Summary ‌
The 6580801365 upgrade kit is based on ‌high-performance processing capabilities‌, ‌industrial-grade redundant design‌ and ‌modular and easy-to-maintain‌. It is compatible with the Honeywell QCS system, significantly improving the control accuracy and production efficiency of equipment such as thickness gauges and scanning frames, and is suitable for high-demand scenarios such as papermaking and metal processing. ‌

HONEYWELL FC control board upgrade is a high-performance control board with advanced processor and circuit design, featuring higher processing speed and lower power consumption. It is suitable for a variety of industrial automation and control systems, and can enhance the performance and stability of the system to meet higher industrial demands.

Features of the upgraded parts

High performance: The upgraded control board adopts advanced processor and circuit design, with higher processing speed and lower power consumption.

Compatibility: The upgraded parts are perfectly compatible with the original QCS system, no need to make large-scale changes to the system.

Reliability: Strict quality control and testing ensure stable operation in harsh industrial environments.

Easy to install: The installation process is simple and convenient, which can greatly reduce downtime and maintenance costs.

Upgrade Process

Needs assessment: First assess the existing system to determine whether it needs to be upgraded and the specific needs of the upgrade.

Procurement of Upgrade Parts: Based on the evaluation results, procure the appropriate FC control board upgrade parts.

System Backup: Before upgrading, backup the existing system to prevent data loss due to unforeseen circumstances.

Upgrade Installation: Install the upgrade into the system according to the installation guide of the upgrade.

System test: After the upgrade is completed, conduct a comprehensive test of the system to ensure that the upgrade works properly and the system performance is improved.

Precautions

Professional operation: The upgrade process should be operated by professional personnel to ensure safety and accuracy.

Power Disconnection: Before performing the upgrade, be sure to disconnect the power supply of the system to prevent electric shock or damage to the equipment.

Backup data: Always backup system data before upgrading to prevent data loss.

Follow the guide: Strictly follow the installation guide of the upgraded parts, do not change or omit the steps arbitrarily.
