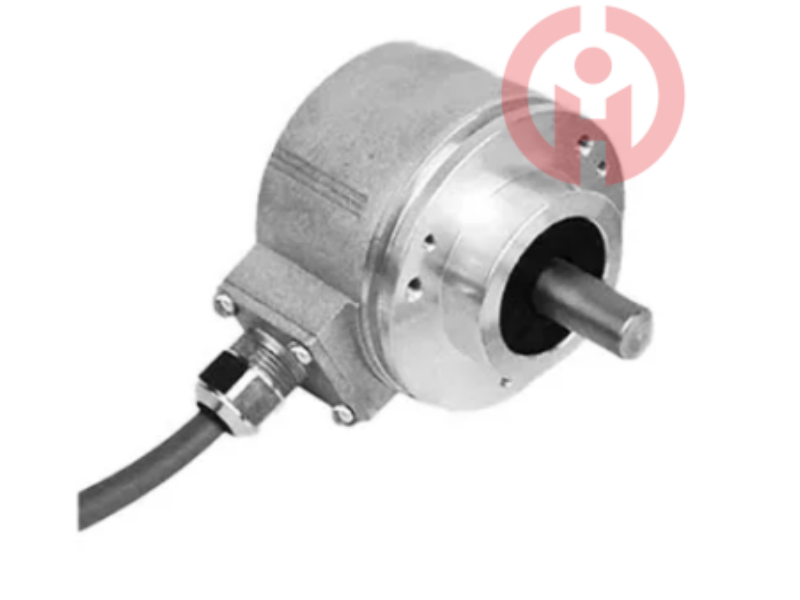

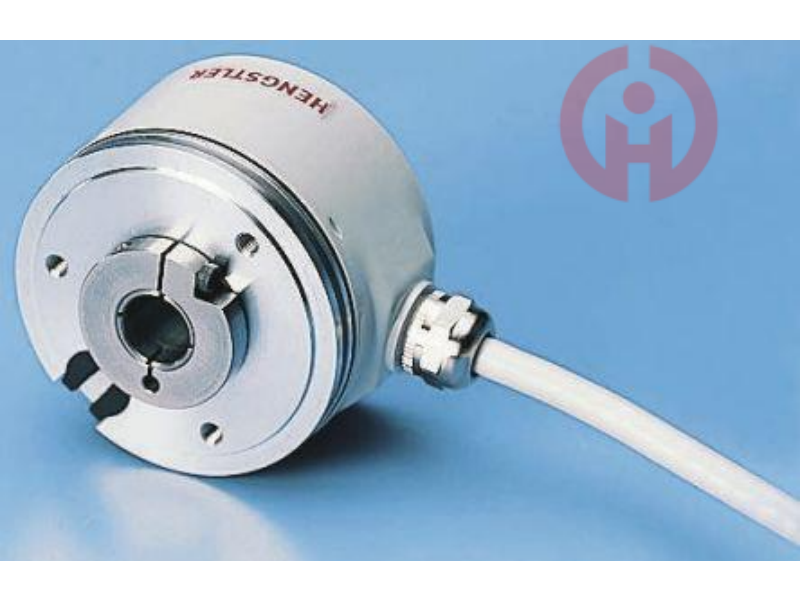

Honeywell Measurex Parts ENCODER QUARATURE 600 CYCLE/REV 29000161

Honeywell  ENCODER

Origin: USA

Brand: Honeywell

Category:
Share

Related products




Product Introduction

1. Basic Properties
‌Model‌: 29000161
‌Brand‌: Honeywell
‌System‌: Honeywell QCS (Quality Control System)
‌Functional Positioning‌: Used to measure and record parameters such as position, speed or acceleration, integrated in thickness gauges, scanning frames and other equipment, and support key variable monitoring and control in industrial automation processes‌.

2. Technical Features
‌2.1 High-precision Measurement‌

-- Using advanced Hall encoding technology, through magnetic pole change and signal phase difference detection, high-precision measurement of rotation direction and speed is achieved, and the lateral detection resolution reaches millimeter level‌.

-- Output A/B phase square wave signal, support real-time position feedback, and improve the thickness gauge's response speed to material thickness changes‌.

2.2 Industrial-grade Reliability‌

-- Designed to be rugged and durable, it is suitable for harsh industrial environments such as high temperature, high humidity, dust and vibration, and the operating temperature range covers -20℃ to 120℃‌. -- Hall elements and magnetic ring components have strong anti-electromagnetic interference capabilities, ensuring long-term stable operation.

‌2.3 System compatibility‌

Seamlessly compatible with Honeywell QCS thickness gauge system (such as board 00287500, spare parts 39000190, etc.), supporting rapid integration and expansion.

3. Application scenarios
‌3.1 Online thickness detection:
--- Metal processing: used for thickness measurement of rolled plates and strips, output electrical signals to the automatic control system, and optimize processing accuracy.
--- Papermaking industry: integrated in the scanning frame system, real-time monitoring of paper thickness uniformity, and reducing raw material waste.
‌3.2 Automatic control‌:
--- Linking QCS system to adjust process parameters (such as rolling mill pressure, winding speed) to achieve closed-loop quality control.

4. System integration and supporting components
4‌.1 Core supporting equipment:
Thickness gauge board: such as 00287500 board, responsible for signal reception and processing.
Sensor module: such as laser thickness gauge spare part 39000190, providing non-contact high-precision measurement.

‌4.2 Extended functions‌:
Supports collaboration with Honeywell scanning frames, solenoid valves and other components to build a complete industrial inspection system.
5. Maintenance and support
‌5.1 Installation specifications‌:
It must be fixed to the QCS cabinet according to the requirements of the Honeywell manual, and use standard tools to avoid over-tightening.
After installation, the thickness gauge calibration process (such as pallet zeroing) must be followed to ensure measurement accuracy.
‌5.2 Maintenance recommendations‌:
Regularly check the status of the magnetic ring and Hall element, and clean dust or oil in time.
Purchase original accessories through Honeywell authorized channels to ensure compatibility and safety.
6. Advantages Summary
The 29000161 encoder is based on high-precision Hall detection technology, industrial-grade durability, and strong system compatibility. It provides key motion parameter feedback for Honeywell thickness gauges and is suitable for high-precision industrial scenarios such as metal processing and papermaking.


HONEYWELL encoders are a range of key components manufactured by Honeywell for use in industrial automation and quality control systems.

Honeywell encoders are widely used in its quality control systems (QCS), especially in the paper industry. Encoders typically work in conjunction with scanning racks for fast, accurate scanning and measurement of paper to ensure process stability and product quality.

Honeywell encoder types and features

Honeywell encoders come in a variety of models, such as 6580800719 and 29000161. These encoders are primarily used to measure and record parameters such as position, velocity or acceleration, ensuring highly accurate position and velocity measurements that improve the accuracy and reliability of QCS systems. In addition, the encoders can detect the position and movement status of the scanning frame, ensuring accuracy and stability of the scanning process.

Technical parameters and maintenance of Honeywell encoders

Honeywell encoders are characterized by high accuracy, high resolution and stability. Their technical parameters include high-accuracy measurements, stable supply voltages and a resolution that captures small variations. To ensure proper operation and long-term stability of the encoder, regular inspections, cleaning and maintenance, and avoidance of impacts are recommended maintenance measures.
