Siemens Robincon unit control board A1A10000432.92M

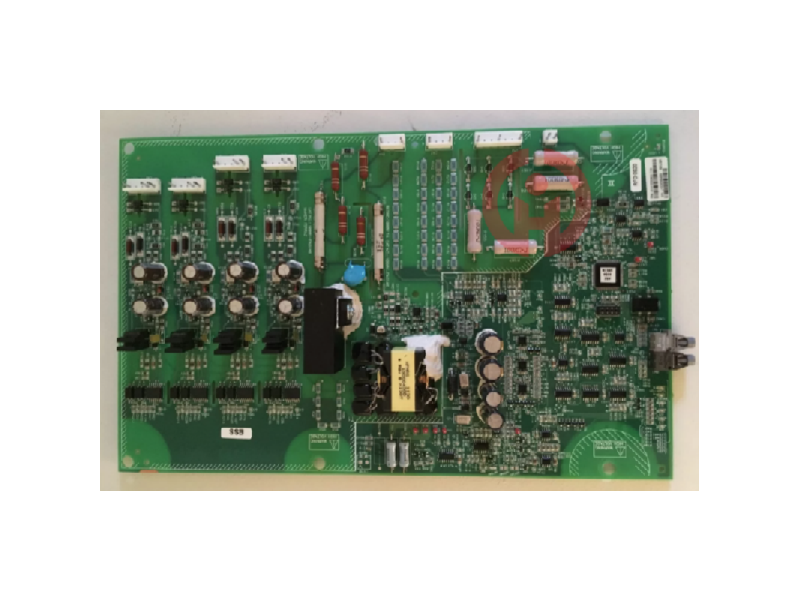

Siemens Robincon Unit Control Board A1A10000432.92M is a control board designed for industrial automation with high reliability and high performance. This control board is mainly used to manage and control various industrial equipment and systems to ensure their efficient operation.

Category:
Share

Related products




Product Introduction

Product Overview
The Siemens Robincon unit control board A1A10000432.92M is a high-performance control board designed for electric powertrain systems. Its main functions and features include:
Lightweight design: specially developed for lighter electric powertrain systems to solve related problems in power systems.

High-frequency switching communication power supply system: adopts international rectifier conversion technology and is widely used in switching equipment, microwave communication, mobile stations and optical fiber transmission.

Working voltage: 240V

Output frequency: 50kHz

Functions of Siemens Robincon unit control board A1A10000432.92M

Functions related to I/O part

The I/O part includes the control power internal terminal block circuit breaker CB8, control power failure detection relay CR2, analog input and output terminal block TB2ELV, cooling fan start contactor and thermal overload relay combination (BM1, BM2, BM3 are used as fan contactors) and other components. The existence of these components indicates that the control board has corresponding functions in signal input and output, power management and control of cooling fans to ensure the normal operation and status monitoring of the entire system.

Functions related to inverters
It plays an important role in the Siemens Robincon inverter system. For example, in terms of fault analysis, when a motor overvoltage fault (MotorOverVoltFault) occurs, this fault is usually caused by incorrect setting or tuning of the inverter, such as the secondary tap setting error or too high input voltage. This implies that the control board is involved in the relevant parameter setting or monitoring of the inverter, thereby managing and regulating the motor voltage. Once an abnormal situation occurs, the problem will be fed back through the fault display.

For the inverter instantaneous overcurrent (IOC) fault, a fault display is generated when the signal of the IOC test point on the system interface board exceeds the inverter IOC setting parameter (7110) in the input protection menu (7000). This indicates that the control board monitors and manages the inverter current. When the current exceeds the set safety range, a fault prompt will be triggered, thereby protecting the inverter.

In terms of underload-related faults, such as underload notification (UnderLoadAlarm) and underload fault (UnderLoadFault), it can monitor the relationship between the inverter torque current and the user preset value. When the torque current drops below the user preset value or is lower than the user preset value for more than a certain period of time, the control board can provide feedback by issuing a notification or determining the fault, which reflects the function of monitoring and managing the load status.

For the output phase imbalance (OutputPhaseImbal) fault, this fault prompt will appear when the software detects that the motor current is unbalanced, indicating that the control board is involved in the monitoring of the motor output phase current to ensure the balance of the three-phase current and the normal operation of the motor.

Main components
Control power supply internal terminal block: responsible for connecting and controlling the input and output of the power supply.

Circuit breaker: provides circuit protection to prevent overload and short circuit.

Control power supply power failure detection relay: monitors the status of the control power supply and takes immediate measures once an abnormality is found.

Analog input and output terminal block: used to connect sensors and actuators to realize system data acquisition and control signal transmission.

Cooling fan start contactor and thermal overload relay combination: control the start of the cooling fan and provide protection when the temperature is too high.

Features
High-precision control
The control board has high-precision control capabilities, which can achieve precise adjustment of the power module to ensure the efficiency and stability of the system operation.

Energy saving and environmental protection
The design focuses on energy saving and environmental protection. By optimizing circuit design and using efficient electronic components, energy consumption is reduced and operating costs are reduced.

Improve work efficiency
Through intelligent control algorithms, the control board can automatically adjust system parameters and optimize work processes, thereby significantly improving work efficiency.

Fault diagnosis and processing
Built-in multiple fault diagnosis functions can monitor the system status in real time, detect and handle various faults in time, and ensure the reliable operation of the system.

Strong compatibility
The design is compatible with a variety of industrial standards and equipment, has good versatility and scalability, and can meet the needs of different industrial applications4.

Application areas
The control board is mainly used in the following fields:
Various switching equipment
Microwave communication
Mobile station
Optical fiber transmission
Power communication, etc.
