Bently Nevada 3500/22M (PWA288055-01)

BENTLY3500/22M (PWA288055-01)

Origin: United

States Brand: Bently Nevada

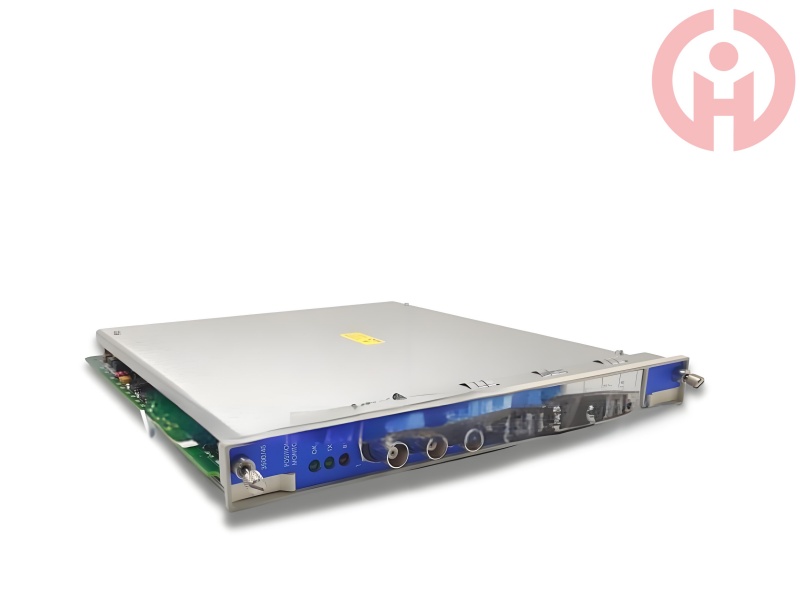

The Bentley 3500/22M Transient Data Interface Module (TDI) is the interface between the Bentley 3500 monitoring system and compatible software, such as System 1 status monitoring and diagnostic software and 3500 system configuration software. This module combines the functionality of the 3500/20 Rack Interface Module (RIM) with the data collection capabilities of communication processors such as TDXnet, and is located in the slot next to the 3500 rack power supply

Category:
Share

Related products




Product Introduction

Data collection: Steady state and transient data acquisition: TDI can continuously collect steady-state and transient dynamic (waveform) data, and transmit the data to the host software through an Ethernet link. Static value data collection: including measurement values from the monitor, providing 4 nX static values for each point, and returning amplitude and phase values. Waveform sampling: Supports waveform data acquisition from 48 channels, with multiple sampling frequencies and bandwidths. Alarm data collection: Data collection before and after the alarm: waveform data collection is conducted 2.5 minutes before the alarm and 1 minute after the alarm, with an interval of 10 seconds. Communication protocol: BN host computer protocol: communicates with 3500 configuration software and 3500 data acquisition and display software. BN TDI protocol: Communicate with Bently Nevada System 1 asset management data acquisition software. Front panel communication: Supports RS232 protocol, with a maximum baud rate of 115.2kbps
