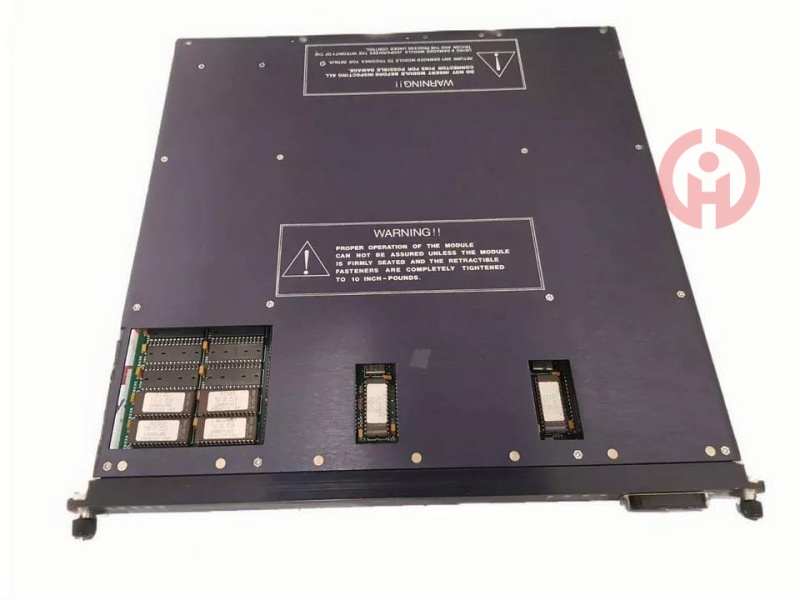

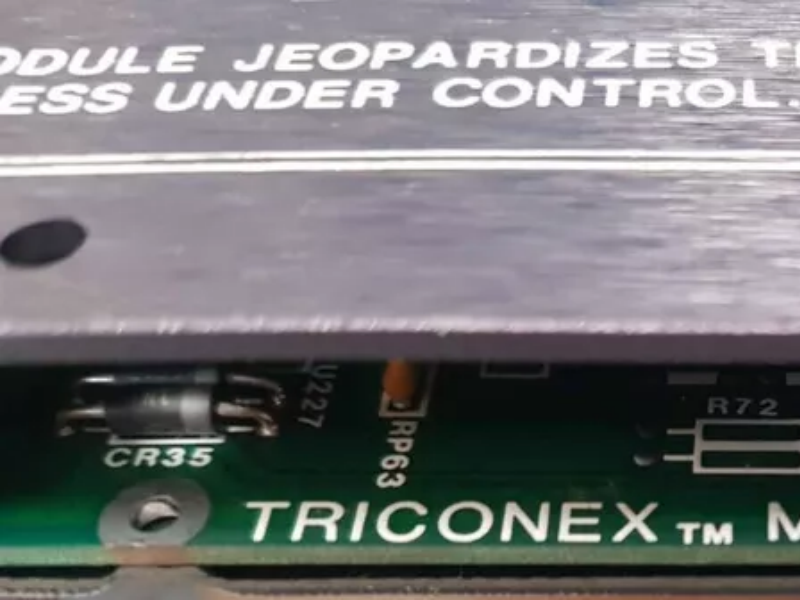

TRICONEX 3002 Processor Model

TRICONEX 3002 Processor Model



Origin: United States



Brand: TRICONEX



TRICONEX 3002 Processor Model pulse input terminal board.



We have a large amount of inventory in our warehouse. Welcome to consult any type online

Number and quantity, discounted price.

24-hour service for you

Category:
Share

Related products




Product Introduction

parameter
Main processor: Motorola MPC860, 32-bit, 50MHz.
Memory: 16MB DRAM (without battery backup), 32KB SRAM (with battery backup), 6MB Flash PROM.
Communication speed: The Tribus communication speed is 25Mbps, with 32-bit CRC protection, 32-bit DMA, and complete isolation.
Serial port: used for diagnostic analysis, optically isolated RS-232 interface in a 25 pin connector, 500V DC isolation.
System power requirements: 24VDC (19.2 to 28.8VDC), with current limitation and reverse polarity protection.
On site power requirements: 24VDC (11VDC to 28.8VDC).
Input type: 32 point 24VDC positive logic, 32 point 24VDC negative logic.
Input voltage range: 24VDC (11VDC to 28.8VDC).
Input impedance: approximately 5.4K Ω.
Input signal delay:< 0.5msec.


Functional Features
Pulse signal processing: specifically designed to process pulse input signals, accurately detect and count pulse signals, and convert them into system recognizable digital signals.
High speed counting capability: capable of processing high-frequency pulse signals, ensuring precise measurement and control.
Multi input type support: support dry contact, wet contact, NPN, PNP and other types of pulse input signals, which can adapt to different sensors and devices.
High safety and reliability: As part of the TRICONEX safety system, it complies with relevant safety standards and specifications, ensuring high safety control in critical processes, and also has self diagnostic and self-monitoring functions.
Easy to integrate and configure: With standard communication interfaces and protocols, it is easy to integrate and configure with other control systems and devices, and supports multiple configuration options.


application area
Flow monitoring: In industries such as petroleum and chemical, it is used to monitor and control the flow of various fluids. By processing the pulse signals transmitted by flow meters, accurate measurement and adjustment of flow can be achieved.
Liquid level control: In industries such as water treatment and food and beverage, it can be used to monitor and control the liquid level height. By receiving pulse signals from liquid level sensors, real-time monitoring and automatic control of the liquid level can be achieved.
Speed measurement: In fields such as mechanical manufacturing and automotive industry, it can be used to measure the speed of rotating equipment. By processing the pulse signal transmitted by the encoder, the speed of the equipment can be accurately measured, providing a basis for the operation and control of the equipment.



Many products are not yet on the shelves please contact us for more products.

If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will

arrange to take pictures in the warehouse to confirm!
