Product Introduction

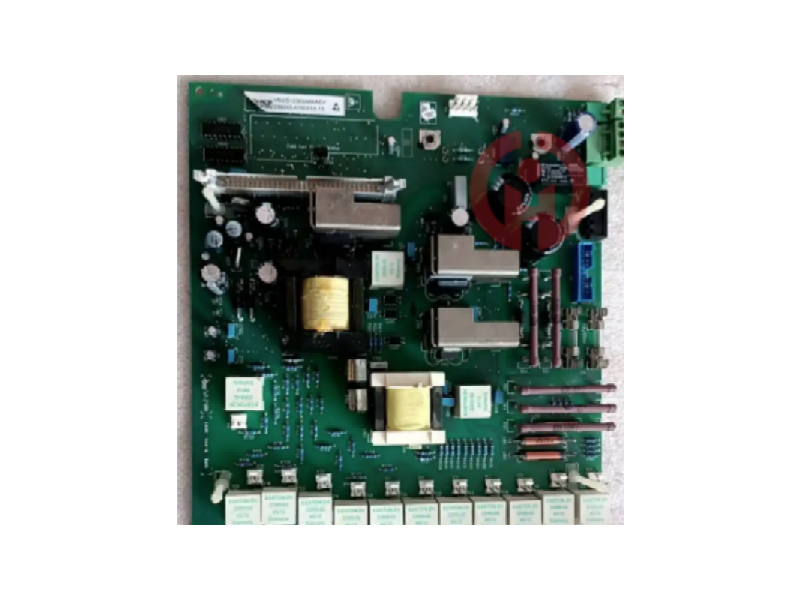

Siemens Power Board C98043-A7001-L2 is a control board for DC motor speed regulation. It has multiple functions and is suitable for various application scenarios in industrial automation. Here are some of the main functions of the board:
DC Motor Speed ​​Regulation
C98043-A7001-L2 can adjust the speed of DC motors by changing the armature voltage, the excitation winding voltage or the armature circuit resistance. Among them, the most commonly used method is the voltage regulation speed regulation system, that is, the motor speed is adjusted by controlling the armature DC voltage.

Integrated design
The speed regulator is small in size and light in weight. It can be used alone or directly installed on the DC motor to form an integrated DC speed regulation motor with all the functions that a speed regulator should have.

Digital control
With the development of computer technology, analog control systems are gradually replaced by digital control systems. C98043-A7001-L2 is a fully digital DC speed regulation device. With software support, various regulation and control functions can be easily realized without changing the hardware or with only a small amount of modification, which improves the reliability and application flexibility of the system.

Real-time monitoring and diagnosis
The board can monitor the running status of the motor in real time, including parameters such as armature incoming line voltage, excitation incoming line voltage, actual incoming line frequency, etc., and can be clearly displayed on the display screen, which is convenient for operators to observe and adjust1. In addition, it also has a fault diagnosis function, which can detect and report abnormal conditions in the system.

Communication and programming
C98043-A7001-L2 supports configuration and remote programming services through industrial Ethernet, such as uploading and downloading programs, monitoring status, etc. This makes system maintenance and upgrades more convenient.

Working principle
The DC speed regulator is a device that adjusts the speed of a DC motor. Its working principle is as follows:
Connection method: The upper end is connected to the AC power supply and the lower end is connected to the DC motor.
Voltage conversion: Convert AC power into two output DC power supplies, one for the motor armature (rotor) and the other for the excitation stator.
Speed ​​regulation: The speed of the DC motor is adjusted by controlling the armature DC voltage.
Feedback control: The motor speed is judged according to the feedback current, and the armature voltage output is corrected if necessary to adjust the motor speed.

Application areas
Industrial applications
CNC machine tools: used to accurately control the movement speed and position of machine tools.
Papermaking and printing: ensure high precision and high efficiency of the printing process.
Textile printing and dyeing: adjust the motor speed to adapt to different production needs.
Optical cable equipment: control cable tension to ensure product quality.
Packaging machinery: accurately control packaging speed and force.
Electrical machinery: ensure safe and stable operation of electrical equipment.
Food processing machinery: adjust the motor speed to adapt to different food processing needs.
Rubber machinery: control speed changes during rubber processing.
Biological equipment: accurately control temperature and stirring speed in bioreactors.
Printed circuit board equipment: ensure high precision and high efficiency of PCB production.
Experimental equipment: used for control of various scientific experiments.
Welding and cutting: accurately control the speed and force during welding and cutting.
Light industry machinery: suitable for automatic control of various light industry production lines.
Logistics and transportation equipment: adjust the speed of the conveyor belt and optimize the logistics process.
Rolling stock: ensure the safety and efficiency of train operation.
Medical equipment: accurately control the motor speed in medical equipment.
Communication equipment: ensure the stable operation of the communication network.
Radar equipment: adjust the speed of radar transmission and reception signals.
Satellite ground receiving system: accurately control the speed of satellite signal reception and processing.

Other applications
In addition to the above industrial applications, C98043-A7001-L2 can also be used for the automation control of civil facilities, such as central air-conditioning systems, electrical control systems, and motion systems.
