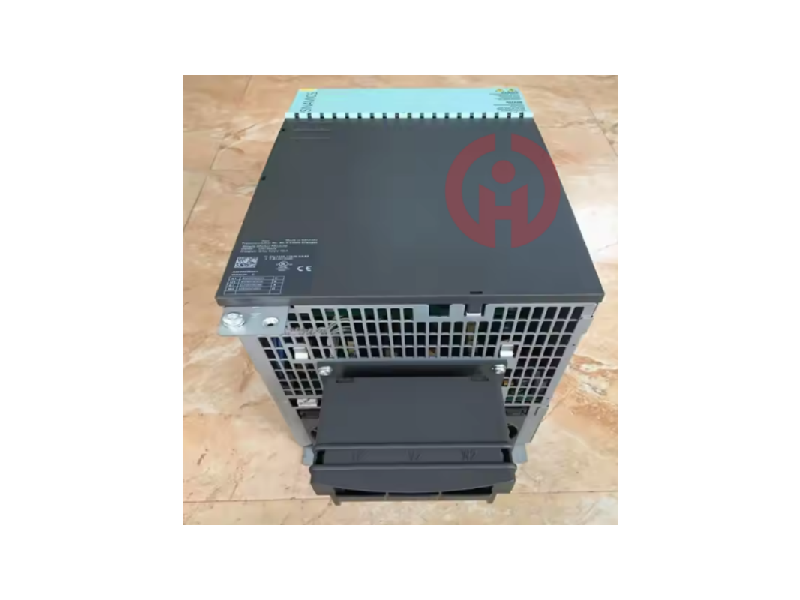

SIEMENS 6SE7036 - 5UK86 - 7DF0 Frequency Converter

Siemens 6SE7036 - 5UK86 - 7DF0 inverter has many features. For example, in some application scenarios, compared with conventional compact inverters, it requires much less space, reduces input power by up to 22%, does not generate additional heat during braking, thus saving costs and space, does not require the configuration of costly brake resistors, and does not require time-consuming wiring.

Category:
Share

Related products




Product Introduction

Functions of Siemens inverter 6SE7036 - 5UK86 - 7DF0:

Limit voltage drop: When the inverter is commutated, it can limit the voltage drop on the grid side, ensure the relative stability of the grid voltage, and help maintain the normal operation of the entire power system.



Suppress high-frequency harmonics: During the inverter rectification process, it can suppress the high-frequency harmonics generated, reduce the interference of harmonics on the grid and other equipment, and decouple the parallel inverter group.



Limit voltage jump: It can limit the jump of grid voltage, avoid damage to equipment due to voltage mutation, and ensure that the equipment works in a relatively stable voltage environment.



Reduce current shock: When the grid system is operating, it can reduce the current shock generated, protect the equipment from the impact of large current shock, and extend the service life of the equipment.



Improve power factor: Providing power factor for the variable frequency automation system helps to improve the energy utilization efficiency of the entire system and reduce energy waste.



Adapt motor power: The adapted motor power is 100KW, which can meet the motor operation control requirements of a certain power demand.



V/F closed-loop control: The V/F closed-loop control method helps to improve the stability and accuracy of the motor operation, automatically adjust the proportional relationship between the output frequency and voltage according to the load change, and make the motor run in a better state.



PAM output voltage regulation: The output voltage regulation method is controlled by PAM (pulse amplitude modulation), and the output voltage is effectively controlled to meet the voltage requirements of different loads.



Bidirectional output type: The output type is bidirectional, which can realize the forward and reverse control of the motor, meet the requirements of the motor running direction in different working scenarios, and increase the flexibility of equipment operation.



PWM switching mode: The PWM (pulse width modulation) is used to control the switching mode of the inverter, and the output voltage and frequency are controlled by adjusting the pulse width to achieve precise control of the motor speed and torque.



Built-in filter: The built-in 1A+1B filter can effectively filter out some electromagnetic interference, improve the electromagnetic compatibility of the equipment, reduce interference to surrounding electronic equipment, and also help its own stable operation.



Compared with conventional compact inverters, the 6SE7036-5UK86-7DF0 requires significantly less space, which gives it significant advantages in space-constrained applications. Its input power is reduced by up to 22% and no additional heat is generated during braking, which not only saves costs but also helps maintain stable operation of the equipment.



Advanced functions and application range

Regenerative feedback function: The inverter has a regenerative feedback function, which is especially suitable for movements that require frequent changes in speed or direction of rotation, and situations where electric braking is required.



Wide range of applications: Suitable for a variety of industrial applications, including but not limited to the drive of conveyor vehicles, stage machinery and equipment in theaters, heavy-duty transport systems for cranes, industrial cleaning machines, etc.



Efficient electromagnetic compatibility: By using an integrated Class A EMC filter, the effective capacitance capacity of the inverter at the input end is larger than that of the traditional PM240 power module, thereby improving electromagnetic compatibility.



Improved power factor: When equipped with a power module with energy regeneration function, it can effectively improve the power factor of the entire system and further reduce energy waste.



Main contactor return signal troubleshooting: If the main contactor return signal has been set but does not respond after starting up, you need to check whether the main contactor return signal circuit is correctly configured.



Precharge fault handling: If the minimum DC bus voltage does not reach the minimum DC bus voltage or exceeds the set precharge time during precharge, the power supply voltage or input DC voltage should be checked to ensure that the inverter operates normally.
