Product Introduction

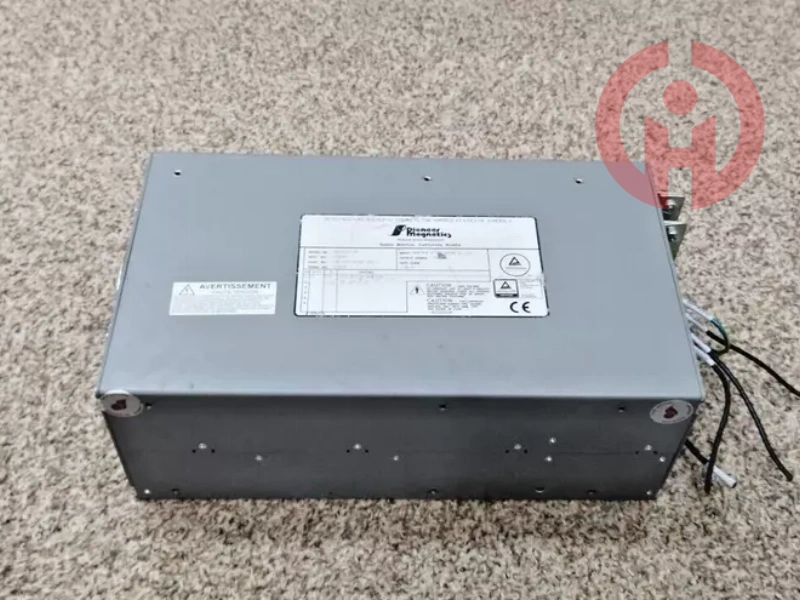

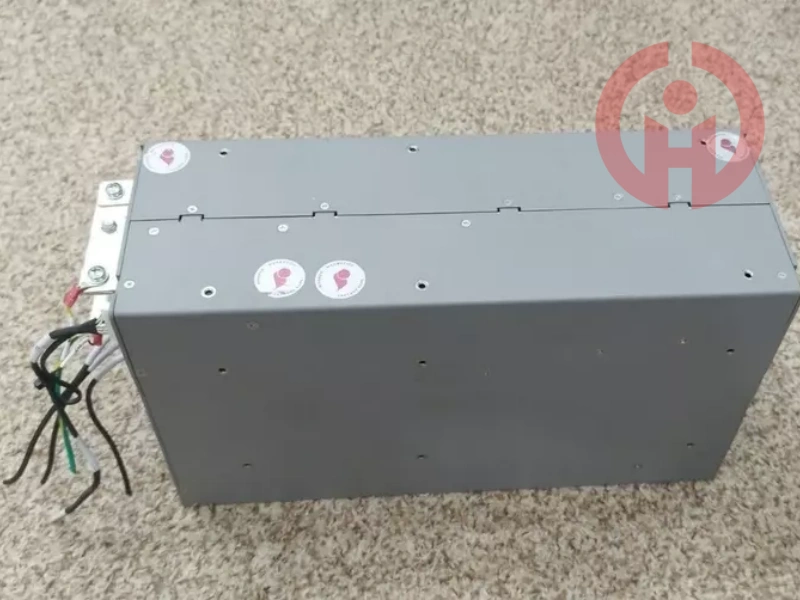

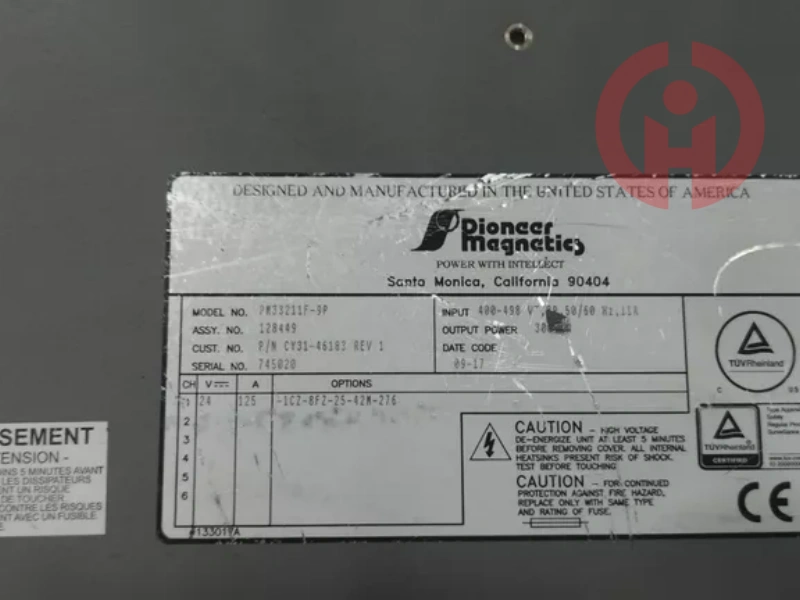

Output voltage: Common output voltages for industrial control power supplies include 5V, 12V, 24V, etc. Pioneer Magnetics PM332211F-9P may output one or more standard

voltages, such as 24V, which is widely used in the field of industrial automation and can be used to power input/output modules, sensors, and other equipment of PLCs.

Output current: Depending on its application scenario, if used for general industrial control equipment, the output current may range from a few amperes to tens of amperes to

meet the needs of different loads. For example, when driving small relays, solenoid valves, and other loads, a current of 2A-5A may be required; If supplying power to larger

industrial equipment, the output current may reach 10A or even higher.

Output power: Output power is equal to the product of output voltage and output current. Assuming an output voltage of 24V and an output current of 10A, the output power is

240W. Of course, the actual power needs to be calculated based on specific voltage and current values, and there may be a certain power margin to cope with instantaneous changes

in load or overload situations.

Output stability: To ensure the stable operation of connected devices, the power supply should have high output stability, and may use circuit designs such as voltage regulation

and filtering. For example, through feedback control circuits, real-time monitoring of output voltage and current can be achieved, and the working state of the power supply can be

automatically adjusted to control output fluctuations within a small range. Generally, the ripple factor of the output voltage may be below 1%.

Protection function
Overcurrent protection: When the output current exceeds the set maximum value, the power supply will automatically cut off the output or limit the current to prevent damage to

the load equipment due to overcurrent. It may trigger when the output current reaches 120% -150% of the rated current.

Overvoltage protection: If the output voltage exceeds the normal range, such as reaching 110% -120% of the rated voltage, the power supply will activate the protection

mechanism to prevent excessive voltage from damaging the load equipment.

Short circuit protection: When a short circuit occurs at the output terminal, the power supply can quickly detect and cut off the output to protect the power supply itself and the

connected circuit. It usually responds within a few milliseconds after the short circuit occurs.

Many products are not yet on the shelves please contact us for more products.

If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will

arrange to take pictures in the warehouse to confirm!
