Product Introduction

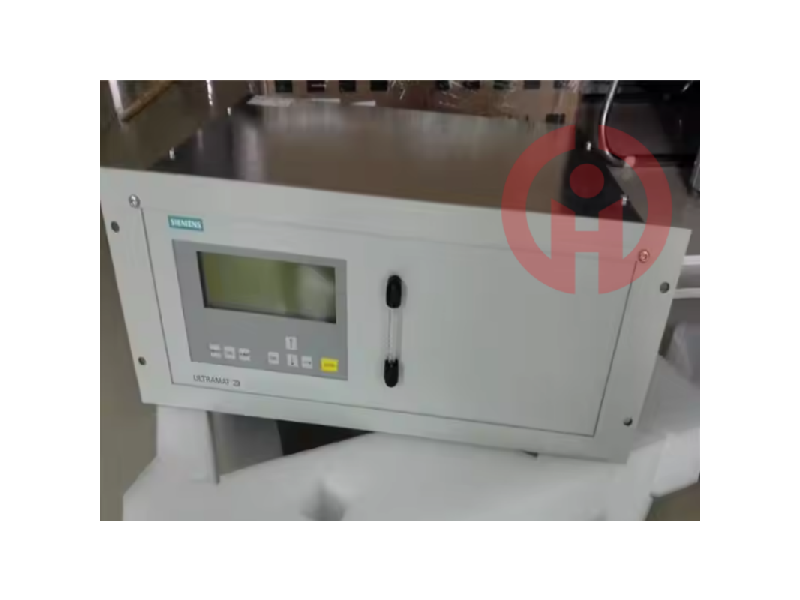

Siemens infrared gas analyzer 7MB2335-0NW00-3AA1 is a device specially designed for measuring specific gas components. The following are its main functions and features:

-- Measurement range: The measurement range of this analyzer is 0 to 400mg/m³, but it can also be extended to 0 to 2000mg/m³.

 -- Measurement object: It is mainly used to measure the concentration of sulfur dioxide (SO2) and nitrogen oxides (NO2).

-- Measurement accuracy: In the range of 0 to 2000mg/m³, the analyzer can provide accurate measurement results.

 -- Resolution: The display resolution is 800*480 pixels, ensuring clear data display.

 -- Infrared technology: The analyzer uses non-dispersive infrared (NDIR) technology, which is a highly selective measurement method that can continuously measure infrared absorbing gas components such as CO, CO2, NO, SO2, NH3, H2O, CH4 and other hydrocarbons.

 -- Oxygen measurement: In addition to infrared gas components, the analyzer can also measure oxygen content, the specific model is OXYMAT6.

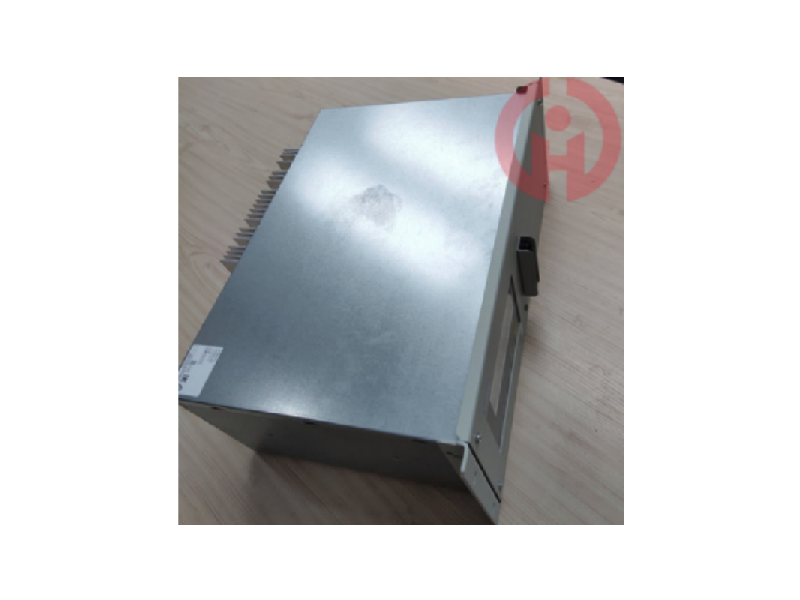

 -- Installation method: The analyzer is designed as a 19-inch pull-out device, suitable for installation in a control cabinet.

 -- Gas interface: The measurement gas interface is a 6mm tube, and no internal measurement gas pump is required.

Integration and communication

-- Automation system integration: Through RS485, PROFIBUS DP and PROFIBUS PA interfaces, the analyzer can be integrated with the automation system.

 -- Software support: PDM (Process Data Management) software can be used for parameter setting and operation, and Siprom GA software can also be used for communication to facilitate maintenance.

Product advantages:

1 .Automatic calibration with ambient air (depending on the measured component)

   No calibration gas is required, saving costs

2 .Multi-layer detector with high selectivity, for example, reducing cross-interference caused by water vapor

3 .Cleanable sample pool to extend the service life of the instrument.

4 .The analyzer uses micro-flow detector measurement technology, which is small in size, highly sensitive and not afraid of vibration.

5 .Menu-assisted operation in simple text format

6 .Service information and records

7 .Open interfaces (RS 485, RS 232, PROFIBUS, SIPROM GA): easy integration and remote control

Application industries

Suitable for various industrial gas furnaces or chimneys, environmental protection industry, engine, boiler monitoring, energy monitoring functional departments, metallurgical industry, thermal power industry, building materials silicate industry, petrochemical energy conservation monitoring, etc. It is used to measure various combustion parameters in flue gas. It is an ideal equipment for boiler adjustment, optimization of combustion efficiency, energy saving and emission control.
