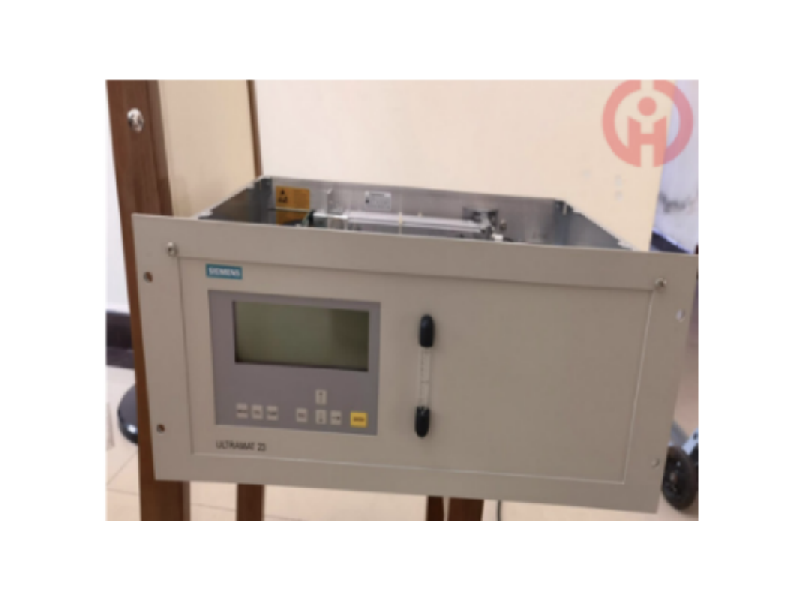

Product Introduction

1. Siemens infrared gas analyzers (such as Ultramat 23 series) use ‌non-dispersive infrared technology (NDIR)‌, which is specially designed for industrial gas concentration measurement and suitable for continuous monitoring of multiple gases (such as CO, CO₂, CH₄, SO₂, etc.), with high precision, strong anti-interference and good long-term stability.

‌2. Typical application scenarios‌
‌-- Industrial process control‌: gas concentration monitoring in chemical, petrochemical and power industries.
‌-- Environmental emission monitoring‌: flue gas emissions (such as NOx, SO₂), greenhouse gas detection.
-‌- Safety protection‌: flammable or toxic gas leakage alarm.
‌-- Laboratory analysis‌: gas purity or mixing ratio detection.

‌3. Technical Parameters

‌Measuring principle‌: Non-dispersive infrared (NDIR)
‌Measuring range‌: Customized according to gas type (e.g. CO: 0-1000 ppm, CO₂: 0-20% vol)
‌Accuracy‌: ±1% full scale (FS)
‌Response time‌: ≤10 seconds (T90)
‌Output signal‌: 4-20 mA, RS-232/RS-485, Ethernet (optional)
‌Ambient temperature‌: -5°C to +45°C (operating temperature)
‌Protection level‌: IP65 (dustproof and waterproof)
‌Power supply‌: 100-240 V AC, 50/60 Hz

‌4. Product Features‌
‌4.1 High reliability‌
- Anti-vibration and corrosion-resistant design, suitable for harsh industrial environments.
‌4.2 Modular structure‌
- Supports expansion of multi-gas measurement modules.
‌4.3 Intelligent diagnosis‌
-- Self-check function, fault alarm and historical data storage.
‌4.4 Low maintenance cost‌
-- Long-life infrared light source and gold-plated gas chamber to reduce calibration frequency.

4.5 Automatic calibration

-- With automatic calibration function, drift can be ignored.

4.6 Output signal

-- Support 0/2/4-20mA output signal.

4.7 Load resistance

-- Load resistance does not exceed 750Ω.

4.8 Display mode

-- Equipped with LCD backlight display.

4.9 Repeatability

-- Repeatability is less than or equal to 1% of the small range.

‌5. Precautions for use‌
‌-- Installation environment‌: Avoid strong electromagnetic interference or drastic temperature fluctuations.
‌-- Calibration cycle‌: It is recommended to calibrate the standard gas every 6-12 months.
‌-- Gas path treatment‌: Filters and dehumidification devices are required to prevent probe contamination.

6. Application field

Siemens 7MB2338-0AA00-3NH1 gas analyzer is widely used in chemical industry, biomedicine, environmental monitoring and other fields due to its high reliability and measurement quality. Its versatility and flexibility make it an ideal choice for proce

Siemens 7MB2338-0AA00-3NH1 gas analyzer is a high-performance analytical instrument with high precision, high sensitivity and high stability. It is suitable for gas composition analysis in various industrial and research fields and can meet the needs of different users.
