Product Introduction

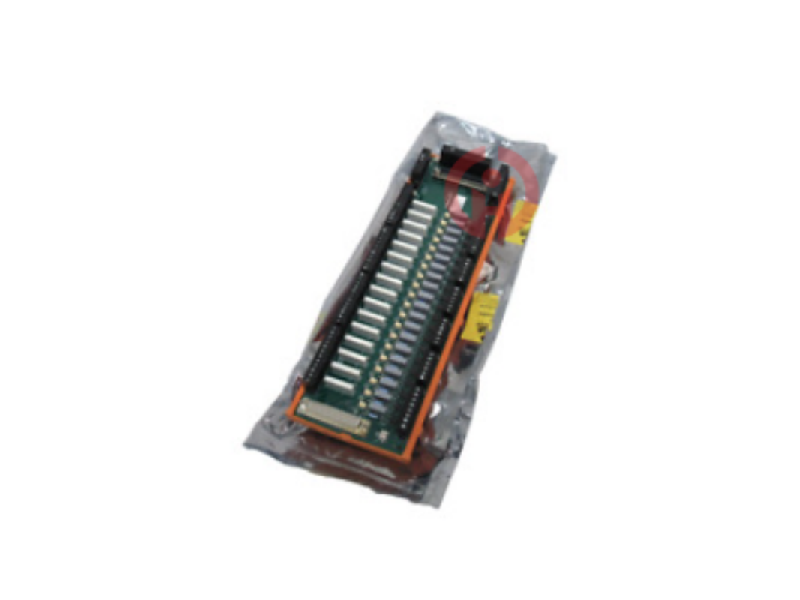

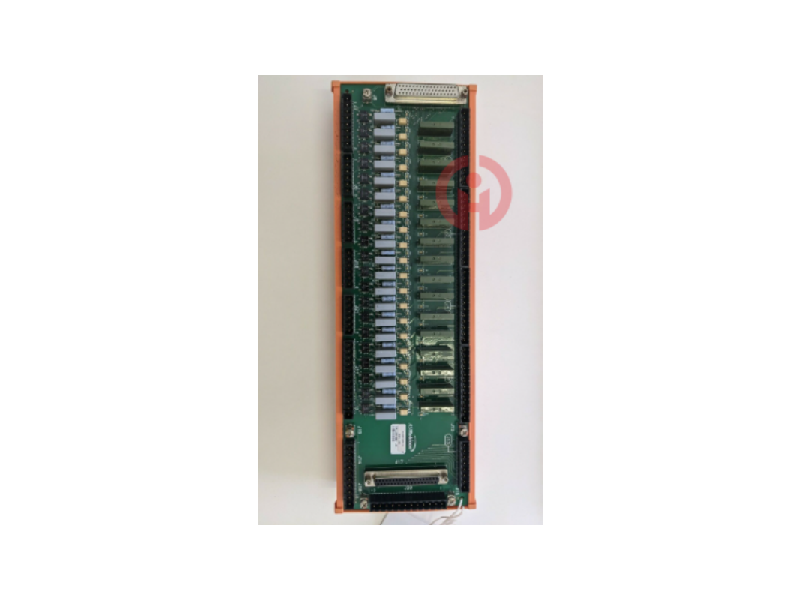

A5E01649374 is a power module produced by Siemens, specifically, it belongs to the medium voltage inverter 2 of the Robicon Perfect Harmony series. Here are some of the main features of the module:
Functional characteristics
-- Input/output interface:
A5E01649374 is an input/output interface board used to connect and control the input and output signals of the inverter.

-- Medium voltage inverter:
This module is suitable for medium voltage inverter applications and can handle higher voltage levels.

-- Energy feedback function:
A5E01649374 has an energy feedback function, which can feed back regenerative energy to the grid under certain conditions to improve the energy efficiency of the system.

-- Control mode:
Supports PWM (pulse width modulation) control mode, and realizes precise motor control through voltage vector control.

-- Filter:
Built-in EMI (electromagnetic interference) filter helps to reduce electromagnetic interference and improve the stability and reliability of the system.

-- Application range:
Widely used in constant torque and medium frequency output occasions, suitable for various industrial automation control fields.

A5E01649374 is an input and output board produced by SIEMENS, which has many advantages and makes it highly competitive in the market.

Role of A5E01649374
A5E01649374 is an I/O interface board produced by Siemens, which plays an important role in the automation control system. The following is a detailed description of its main functions:
Role of the unit power board
Power supply function: Take power from the DC bus of the power unit and output 24V DC power for the unit control board. This ensures that the control board can obtain a stable power supply, thereby ensuring the normal operation of the entire system.

Role of the unit control board
Signal reception and processing: Receive the main control system signal and convert it into a control signal to provide it to the drive board. This process is essential for achieving precise automation control.

-- Fault monitoring and reporting: Perform real-time fault monitoring and report fault information to the main control system. This function helps to promptly discover and solve problems in the system and improve the reliability and safety of the system.

-- Power supply management: Supply power to the unit drive board to ensure that the drive board can work normally.

Function of the driver board
-- Signal drive: Receives control signals from the unit control board and provides drive signals for the four IGBTs (insulated gate bipolar transistors) on the unit. As a power semiconductor device, IGBT is widely used in power electronic equipment to efficiently control current.

-- Fault monitoring: Monitors drive faults and reports the monitoring results to the unit control board. This helps prevent potential faults and ensures the stable operation of the system.

A5E01649374 plays a key bridge role in the automation control system. Through power supply, signal transmission and fault monitoring functions, it ensures the efficient and safe operation of the system. It has a wide range of applications, including but not limited to industrial automation, power electronic equipment and other fields.

Brand and technical advantages
Brand background: A5E01649374 comes from SIEMENS, a world-renowned industrial automation and control technology provider known for its high-quality products and innovative technologies.

-- Technical features: The board adopts a modular design for easy installation and maintenance. It supports a variety of PLC control systems and has good compatibility and scalability.
