Product Introduction

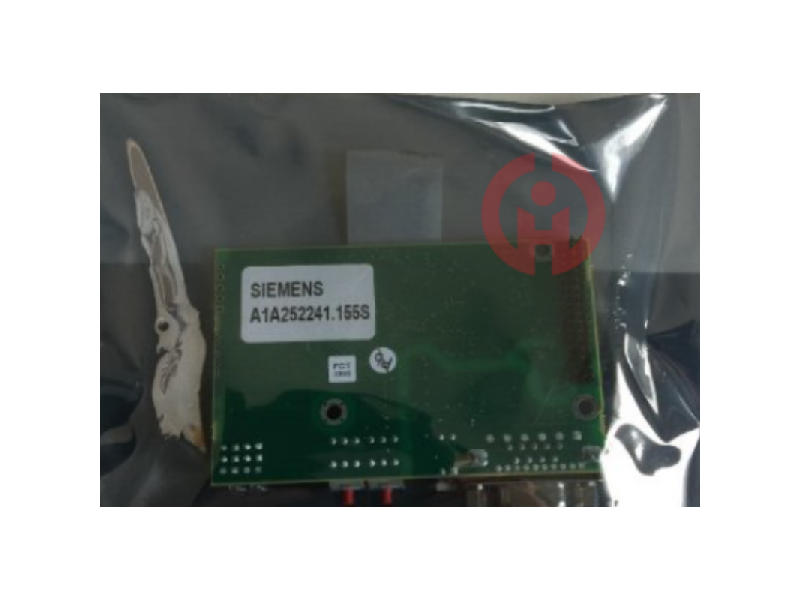

Siemens Robicon A1A252241.155S is a communication expansion board designed for Siemens Robincon inverters. The main function of this communication board is to expand the communication protocol of the inverter so that it can support more grid communication requirements.

- Universal power phase: three-phase

-- Rated voltage: three-phase AC525-690V

-- Adaptive motor power: up to 6000kW

-- Power supply voltage: high-voltage filter without filter

-- DC power supply nature: current type

-- Control mode: current vector

-- High precision: ensures accurate communication data transmission.

- Size: 280×110×10mm, easy to install and maintain.

The communication expansion board is installed on the serial communication board: it plays the role of expanding the communication protocol. Each NXGpro control system has two communication interfaces to realize network communication through different communication protocols.

Inverter Preventive Maintenance (PMA)
Inverter Preventive Maintenance (PMA) is a basic measure to improve inverter reliability, reduce maintenance and repair costs, extend the service life of the inverter, and reduce unexpected downtime. Its main measures include checking the current problems of the inverter and eliminating hidden dangers in safe operation, thereby improving the performance of the inverter, reducing the failure rate, shortening the downtime, and improving the equipment utilization.

Application Scenarios
The A1A252241.155S communication board is widely used in various industrial automation scenarios, including but not limited to:
Production line transformation: By upgrading the communication capabilities, the automation level of the production line is improved.
-- Power generation: Ensuring the stability and reliability of power supply.
-- Water/wastewater treatment: Achieving high productivity at low power and optimizing the water treatment efficiency.
-- Oil and gas: Small footprint, high availability, suitable for field work.

Role in Siemens Robincon Inverter
-- As an extended communication board: A1A252241.155S is a spare part of Siemens Robincon inverter, which is an extended communication board. It is installed on the serial communication board and plays the role of an extension of the communication protocol. It helps the inverter achieve network communication through various communication protocols, so as to better perform data interaction and other operations with other devices.

Corresponding role in Siemens equipment system
-- Related to various Siemens equipment:
Regarding Siemens Robincon spare parts, it is related to A1A, A5E, LDZ, 6SR, etc. Regarding Siemens controllers, it is related to 6DD1, 6DD2, 3154OP, 6DP, etc. Regarding Siemens S120, it is related to A5E, 6SL30, 6SL31, etc. It is also related to Siemens DC speed control (6RA80, 7VV, 6RY, 6RX, etc.), Siemens CNC servo drive (1FK, 1FT, 1PH, 1FN, 1FW, 6FC, 6FX, 6SN, 6AU, etc.), Siemens MASTERDRIVE (6SE70, 6SY70, etc.), Siemens vacuum circuit breaker/contactor (3AH, 3AE, 3TL, 3TM, VS30, 3AY, 3AX, etc.), Siemens conventional motor (1PQ, 1LA, 1LL, 1LE, 1LG, etc.), Siemens instruments (6GT, 6DR, 7MB, 7ME, 7MF, 7MH, 7ML, etc.), Siemens LCI/Robincon and medium voltage spare parts (6SL39, 6SB, 6SC, 6SD, 6ZY, etc.) and Siemens integrated protection (6SJ, 7PA, 7UM/UT, 7KG, 7RW, 7VE/VH, 7XT/XV, etc.), reflecting its importance and relevance in the entire Siemens equipment system.

Improve the performance of Siemens Robincon inverters
-- Assistance in inverter preventive maintenance: Inverter preventive maintenance (PMA) is essential to improving the reliability of inverters, reducing maintenance and repair costs, extending the service life and reducing unexpected downtime. Although it is not explicitly stated that A1A252241.155S is directly involved in preventive maintenance, as a component of the inverter, its normal operation helps the entire inverter system remain stable, thereby indirectly having a positive impact on the purpose of inverter preventive maintenance. For example, ensuring normal communication helps to obtain timely information about the working status of the inverter, which is convenient for preventive maintenance measures such as checking the current problems of the inverter and eliminating hidden dangers in safe operation, thereby improving and enhancing the performance of the inverter, reducing the failure rate, shortening the downtime and improving the utilization of the equipment.

Basic Information‌
‌Brand/Series‌: SIEMENS ROBICON industrial automation product line, belonging to the high-voltage inverter and control system expansion components‌.
‌Model Positioning‌: A1A252241.155S is an expansion communication board used to enhance the data interaction capabilities between devices, commonly used in inverters and industrial automation control systems‌.

Core Functions and Features‌
Communication Capability‌

-- Supports Serial Port Communication Protocols (such as RS-232/485) to achieve real-time data transmission between the device and the host computer, PLC or other controllers‌.

-- May be compatible with industrial protocols such as Modbus and Profibus, and adapt to a variety of control systems‌.

Performance Advantages‌

‌-- High Stability‌: Adopts industrial-grade circuit design, adapts to complex electromagnetic environments, and ensures long-term stable operation‌.
‌-- Modular Design‌: Easy to maintain and expand, reducing downtime‌.

Technical Specifications

‌-- Working voltage‌: 220~440V (refer to the same series LDZ252241.156SC).
‌-- Applicable scenarios‌: high-voltage inverters (such as GH180, GL150 series), power systems, industrial automation production lines, etc.

Application areas‌
‌-- Industrial automation‌: integrated into the inverter system to optimize the production line control logic and data acquisition‌.
‌-- Energy and power‌: used for power grid equipment communication management to improve power transmission efficiency and safety‌.
‌-- Intelligent manufacturing‌: supports equipment networking and remote monitoring, in line with the needs of Industry 4.0‌.

‌
