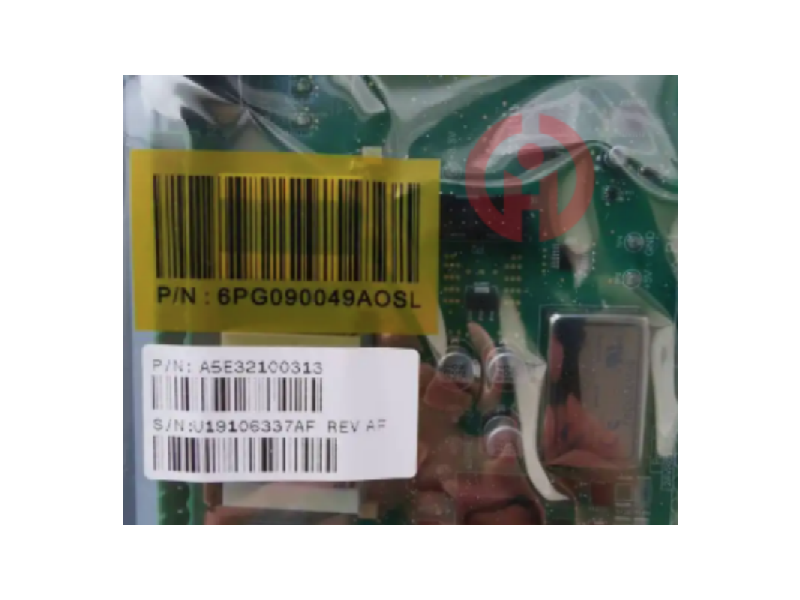

Siemens Robincon IO Board A5E32100313

Siemens Robincon IO Board A5E32100313 plays a vital role in the Siemens Robincon high-voltage inverter GEN5 control system. It is responsible for the conversion of user input signals, the conversion of digital outputs, Modbus bus communication, and supports multiple input and output channels. It is the key to the stable operation of the system.

Category:
Share

Related products




Product Introduction

Siemens Robincon IO Board A5E32100313 is a high-performance user input and output (I/O) board designed for industrial automation applications. This board has many advantages that make it an ideal supporting component for Siemens Robincon inverters.

Main features
Brand and series: Siemens Robincon A5E series, ensuring product reliability and compatibility.

Power phases and rated voltage: Supports 3-phase power supply, rated voltage up to 690V, suitable for a wide range of industrial environments.

Applicable motor power range: Suitable for motors from 200kW to 10000kW, meeting the needs of different industrial applications.

Filter comes with: Built-in filter, effectively reducing electromagnetic interference and ensuring the stability of signal transmission.

DC power supply nature: Voltage type design, improves energy utilization efficiency.

Control mode: Adopts VVVF vector control to achieve efficient motor drive.

Output voltage adjustment mode: PWM control, accurately adjusts the output voltage to ensure stable motor operation.

Rated current: Up to 10A, meeting the power supply needs of high-power equipment.

Communication mode: Communicate with the digital modulator in the control cabinet through optical fiber connection to achieve high-speed data transmission.

Input and output type: digital input and output, strong compatibility.

Protection level: IP21, suitable for most industrial environments.

Working altitude: suitable for high altitude areas from 0ft to 3300ft, adapting to harsh natural conditions.

Working environment temperature: a wide temperature range from 0℃ to 45℃, ensuring stable operation under various climatic conditions.

Life: up to 20 years of service life, reducing maintenance costs.

Weight: lightweight design, easy to install and maintain.

Material number: A5E32100313, easy to identify and manage.

Dimensions: 350x30x200mm, saving space.

Minimum packaging number: standard packaging, convenient for bulk purchase and use.

Control unit: microcomputer board design, providing powerful data processing and control capabilities.

Remarks: Spare parts can be sold to increase product flexibility and sustainability.

High-value technical description: This IO board is designed with advanced technology to ensure efficient operation in complex industrial environments.

Module troubleshooting: Provides a detailed troubleshooting guide to help users quickly solve problems.

Siemens Robincon high-voltage inverter GEN5 control system USERIO board A5E32100313 is an important component that plays a key role in the system. Here are some of the main functions of the board:
User input signal conversion
One of the main functions of the USERIO board is to convert all user input signals into digital quantities and transmit them to the industrial computer. This means that when the user sends instructions or data to the system through various interfaces or sensors, these analog or digital signals will first be captured by the USERIO board and converted into a digital format that the industrial computer can understand and process.

Digital output conversion
In addition to receiving user input, the USERIO board can also convert the digital quantity output by the industrial computer into corresponding analog or digital signals and output them to the user. This enables the system to respond to external devices or systems, such as controlling the speed or start and stop of the motor.

Modbus bus communication
The communication between the USERIO board and the industrial computer is achieved through the Modbus bus. Modbus is a widely used communication protocol that allows standardized data exchange between different devices. This communication method ensures that the various parts of the system can work together efficiently and reliably.

Support multiple input and output channels
The standard configuration of the GEN3 series inverter provides 2 analog inputs, 4 analog outputs, 7 digital inputs, and 8 digital outputs for users to use. If more analog or digital channels are required, they can be separately proposed in the technical requirements. This shows that the USERIO board has the ability to expand the input and output capabilities of the system to meet the needs of specific applications.

System components
In Siemens Robincon inverters, the USERIO board is part of the control system. The inverter usually consists of a transformer part, a user I/O part, a control part, and a unit part. As the core of the user I/O part, the USERIO board works with other components such as industrial computers, UPS, auxiliary switching power supplies, etc. to ensure the normal operation of the inverter.
