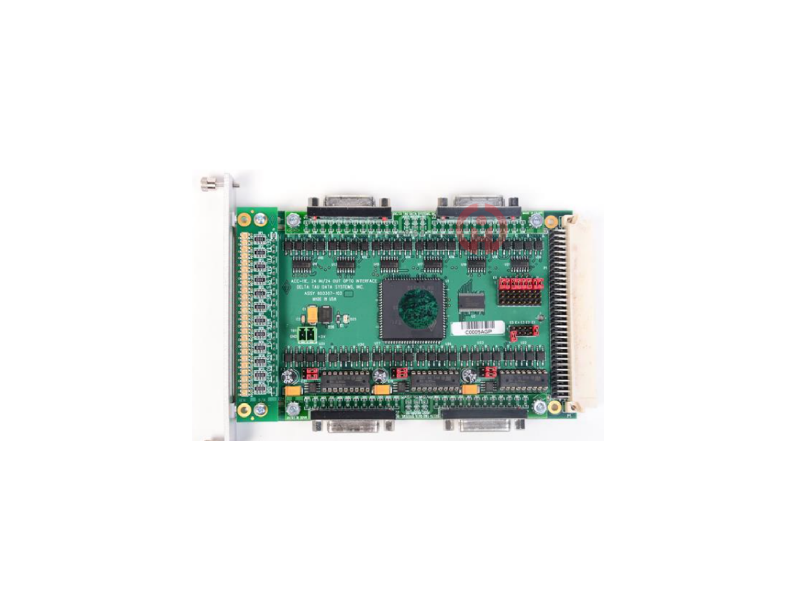

DELTA TAU ACC-11E Isolated 24-Input/24-Output Backplane Board

Brand: DELTA TAU

Origin:USA

  • 24 Inputs and Outputs
  • Optically Isolated I/O
  • 12V to 24V Activation Range

The Delta Tau ACC-11E Isolated 24-Input/24-Output Backplane Board is a general-purpose input/output board to the UMAC-Turbo or UMAC-MACRO systems. It may be configured for a wide variety of different uses to serve many diverse applications. ACC-11E provides 24 lines of optically isolated inputs and 24 lines of optically isolated outputs. The actual I/O reads and writes are carried out using M-variables. ACC-11E is one of the series of 3U rack I/O accessories designed to transfer data through the UMAC BUS (UBUS). The inputs to the ACC-11E board have an activation range from 12V to 24V, and can either be sinking or sourcing depending on the reference to the opto circuitry. The opto-isolator IC used is a PS2705-4NEC-ND quad photo-transistor output type. This IC allows the current to flow from return to flag (sinking) or from flag to return (sourcing).

Category:
Share

Related products




Product Introduction

Delta Tau ACC-11E is a multi-axis controller control card, manufactured by Delta Tau. It is mainly used in the field of industrial automation control. It supports simultaneous control of multiple axes with high-precision pulse output and position feedback, and is suitable for position control systems requiring precise positioning and length fixing, as well as for PC-based NC control systems.

Technical features and application areas
Multi-axis control: ACC-11E supports multi-axis simultaneous control, each axis can be controlled independently, and multi-axis linkage and interpolation functions can also be realized through software to meet the needs of complex motion trajectories and coordinated control.
High precision: With high precision pulse output and position feedback function, it ensures accurate position and speed control of the motor, which is suitable for the demand of high precision machining and positioning.
Rich interfaces: Provides a variety of interface options, including pulse output, pulse counting, digital input/output, etc., which facilitates connection and communication with various external devices. In addition, it also supports high-speed communication interfaces such as USB and Ethernet, which is convenient for data transmission and remote monitoring.
Powerful interpolation function: supports linear interpolation, circular arc interpolation and other interpolation methods to meet the control needs of different shapes and trajectories.
Open function library: provide open function library and programming interface, users can develop and construct the required control system under DOS or Windows system platform. Supports a variety of high-level programming languages, such as C, C++, etc., to improve development efficiency.
Application Areas
Delta Tau ACC-11E is widely used in the following fields:

CNC machine tools: for tool motion control to ensure machining accuracy and efficiency.
Packaging and printing machines: for automated control to improve productivity and product quality.
Defense equipment: for tracking and positioning systems to ensure the accuracy and stability of equipment.
Intelligent medical devices: to realize precise motion control for automated operation in medical equipment.
