Product Introduction
MACRO Communication
(24) Isolated Self-Protected Digital Inputs
(24) Isolated Self-Protected Digital Outputs

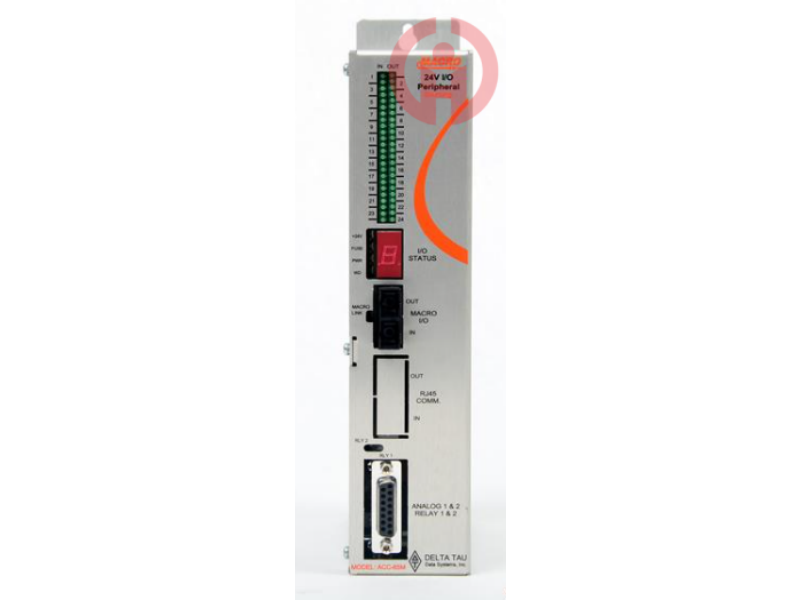

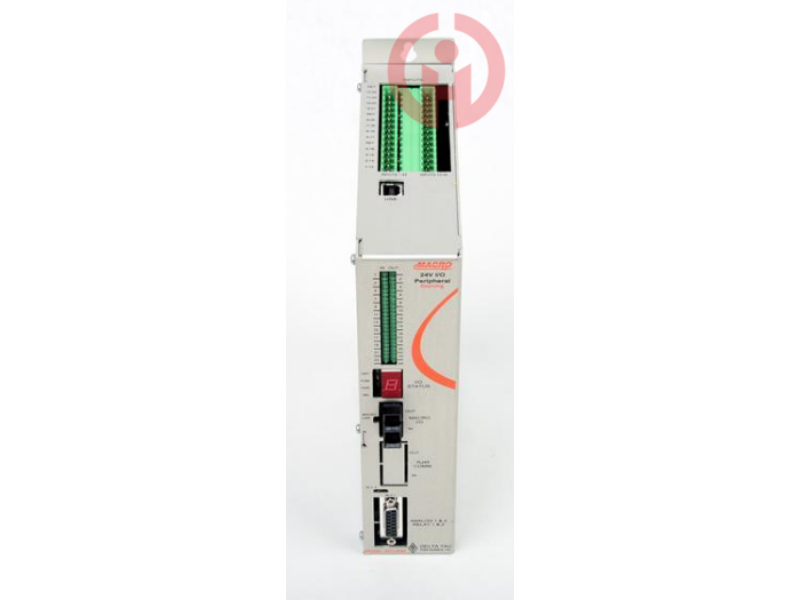

The Delta Tau ACC-65M Series MACRO-Controlled Digital I/O Peripheral Modules feature 24 isolated self-protected digital inputs and 24 isolated self-protected digital outputs. The inputs and outputs are controlled through a MACRO link either with fiber optic or copper and RJ-45 connector. The inputs are either sinking or sourcing (by user wiring) at 12 V to 24 V levels. The outputs are sinking, each at up to 24 VDC with 600 mA continuous and 1.2 A peak for up to 2 seconds.
Power Requirements: Normally requires an external power supply, specific voltage and current requirements should be referred to the product manual.
Mounting and Configuration: Suitable for mounting in control cabinets or panels, typically using DIN rails or panel mounting screws. The interface board can be configured and commissioned using software tools supplied by Delta Tau such as PMAC Executive.
Digital I/O: 32 digital input channels and 32 digital output channels are provided. The digital inputs are typically opto-coupler isolated and support 24V level signals. The digital outputs may be in the form of relay or transistor outputs and also support 24V level signals.
Analog Input/Output: Provide 8 analog input channels to support ±10V analog signal input; provide 8 analog output channels for ±10V analog control signal output.
Application Scenarios
DELTA TAU ACC-65M is widely used in a variety of industrial automation control systems, especially in motion control applications that require high precision and high efficiency. Its stable and reliable performance and rich interface options make it widely used in automated production lines, CNC machine tools, robot control, printing equipment, textile machinery and many other fields.
