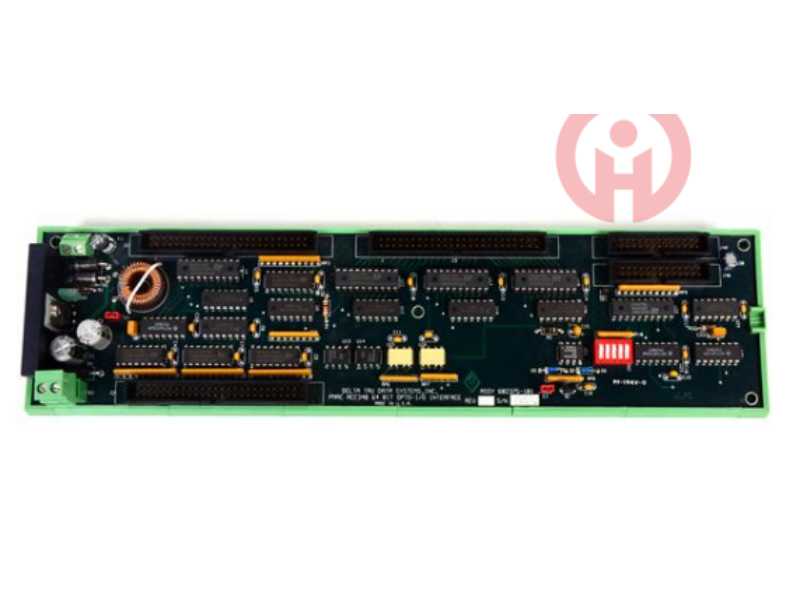

DELTA TAU ACC-34B PMAC 64-Bit Standard I/O Interface Board

Brand:DELTA TAU

Origin:USA

The DELTA TAU ACC-34B is a high performance motion control card designed for industrial automation and precision control. It is based on a high performance processor (e.g. DSP) and provides a stepper/servo motor motion control solution that enables precise and coordinated control of multiple servo motors.The ACC-34B is typically used in conjunction with a PC or industrial PC to control the speed and position of the motors by sending out continuous pulse signals.

Category:
Share

Related products




Product Introduction

Designed for Easy Connection to Opto-22 and Compatible Mounting Racks
32 Lines of Optically Isolated Inputs / Outputs
Up to 32 ACC-34Bs Can Be Connected to a Single PMAC
The Delta Tau PMAC ACC-34B 64-Bit Standard I/O Interface Board is a discrete input/output (I/O) board designed for easy connection to Opto-22 and compatible mounting racks. The board interfaces with several third party Opto modules (e.g. Opto-22 Models G4PB24 and G4PB16H) via standard 50-pin flat cables. The PMAC ACC-34B provides 32 lines of optically isolated inputs and 32 lines of optically isolated outputs. Both the inputs and the outputs are TTL compatible negative logic (low true) types.

Up to 32 ACC-34Bs may be connected to a single PMAC, giving the possible total number of 1024 input and 1024 output lines in addition to those available on the PMAC board and those available on the parallel I/O expansion board(s). The ACC-34B communicates to PMAC via its JTHW connector through a flat cable. In situations where the I/O modules are a long distance away from PMAC, the ACC-35B may be used as a local and remote buffer between PMAC and ACC-34B.
