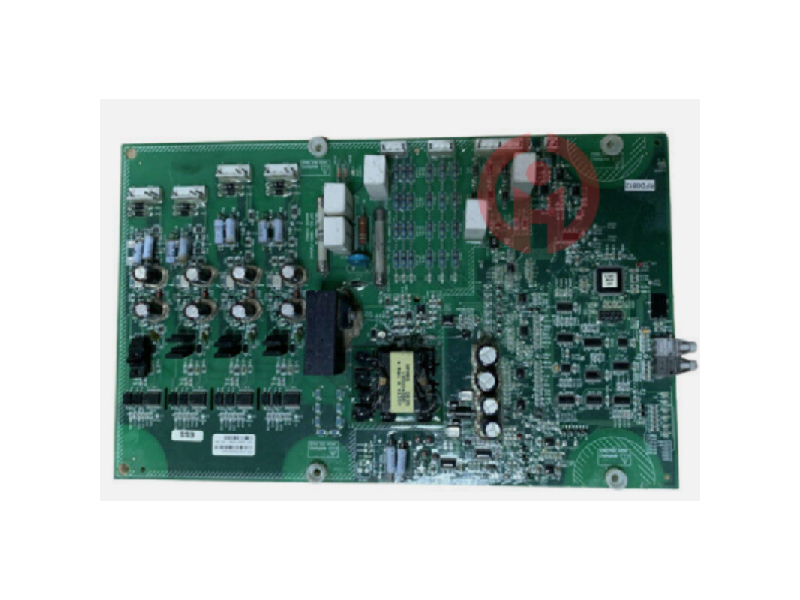

Siemens Robincon unit control board A1A10000432.54M

Siemens Robincon unit control board A1A10000432.54M is a control board designed for Siemens Robincon series, with high efficiency and reliable performance. This control board is mainly used to realize the core functions of the automation control system to ensure the stable operation and efficient operation of the equipment.

Category:
Share

Related products




Product Introduction

Main functions and features:
VVF vector control: The control board adopts advanced VVVF (Variable Frequency Variable Voltage) vector control technology, which can accurately control the speed and torque of the motor and improve the overall efficiency and response speed of the system.
PWM control: Through pulse width modulation (PWM) technology, the output voltage can be accurately adjusted to ensure the stable operation of the motor under various load conditions.
Wide adaptability
Adaptable motor power: It can adapt to motors of various power levels to meet the needs of different industrial application scenarios.
Power phase number and rated voltage: Supports rated voltage of 2.4-10KV, suitable for a variety of power grid environments.
Fault diagnosis function: Built-in multiple fault diagnosis functions can monitor and report the working status of the motor and inverter in real time, which is convenient for timely discovery and handling of potential problems.
Communication method: Communicate with the digital modulator in the control cabinet through optical fiber connection to ensure high speed and stability of data transmission.
Input and output type: It has a variety of input and output types to meet different control needs.
Protection level: It reaches IP21 level, effectively preventing the intrusion of dust and liquids and extending the service life of the equipment.
Working altitude: Suitable for working environment from 0ft to 3300ft, adapting to various geographical conditions.
Working environment temperature: It can work normally in the temperature range of 0℃ to 40℃, ensuring the wide applicability of the equipment.
NXGII control system CCB unit control function: A1A10000432.54M is the CCB unit control board of the NXGII control system, which plays a core control role in the related equipment of Siemens Robincon.

Communication function
The communication method is to communicate with the digital modulator in the control cabinet through optical fiber connection, so as to realize data transmission and interaction, and ensure that all parts of the equipment can work together.
Function adaptation related to the working environment
In terms of working altitude, it is suitable for the range of 0ft - 3300ft.
The working environment temperature is 0℃ - 40℃, and its control and other functions can be normally performed in this temperature range.

Application field
Industrial automation
Due to its excellent performance and reliability, the Siemens Robincon unit control board is widely used in various industrial automation fields, including but not limited to:
Manufacturing: Accurately control the movement and speed of the robot arm on the production line.
Logistics and transportation: optimize the operating efficiency of the conveyor belt and the speed of cargo sorting.
Energy management: realize the effective distribution and control of electric energy in the power system.
Building automation
In the field of building automation, this control panel also plays an important role:
Air conditioning system: accurately adjust the operating status of the air conditioning unit to ensure the comfort of the indoor environment.
Lighting system: automatically adjust the switch of lighting equipment according to the intensity of natural light to save energy.
Purchase and after-sales

Common faults and solutions
Display name: MinimumSpeedTrip (small speed trip)
Potential cause: The motor speed is lower than the zero speed setting. It may be caused by motor stalling or low speed command.
Display name: LossofFieldCurrent (field current signal loss)
Potential cause: It only occurs under synchronous motor control, which may be a fault in the excitation system or loss of input power to the excitation system.
Display name: OutputPhaseOpen (output phase open circuit)
Potential cause: The software detects that the output phase of the inverter to the motor is open. Usually a problem with the feedback part will cause this fault.
Display name: InTorqueLimit (torque limit)
Potential cause: The inverter is in speed drop condition for more than one minute.
