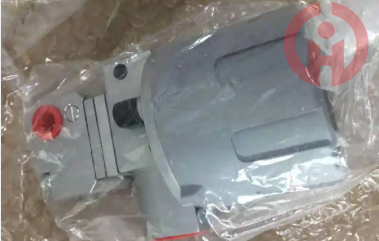

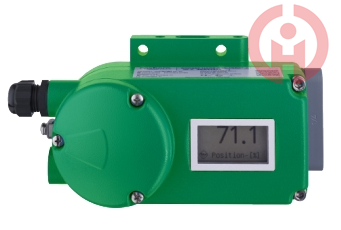

FOXBORO SRD998-HBD0-B0S-1SB07-A1-L Intelligent Positioner

SRD998 Intelligent Positioner with HART Communication
Origin: USA

Brand: FOXBORO

The Intelligent positioner SRD998 is designed to operate pneumatic valve actuators and can be operated from control systems (for example, the I/A Series System and Evo™), controllers or PCbased configuration and operation tools such as the FDT/DTMs VALcare™. The positioner is available with HART 7 communication protocol. The multi-lingual full text graphical LCD, in conjunction with the rotary selector, allows a comfortable and easy local configuration and operation. For installations in contact with explosive atmospheres certificates are available.

Category:
Share

Related products




Product Introduction

Main Features

♦ Autostart with self-calibration

♦ Self diagnostics, status- and diagnostic messages

♦ Easy local operation with the rotary selector

♦ Multilingual full text graphical LCD

♦ With HART 7 communication

♦ Stroke 8 to 260 mm (0.3 to 10.2 in) with standard lever; larger stroke with special lever

♦ Angle range up to 95° angle

♦ Mounting onto any linear or rotary actuator

♦ Supply air pressure up to 10 bar (145 psig)

♦ Single or double acting

♦ Protection class IP 66

♦ Explosion protection: Intrinsic Safety according to ATEX/IECEx, INMETRO, NEPSI, PESO, CNS, EAC
